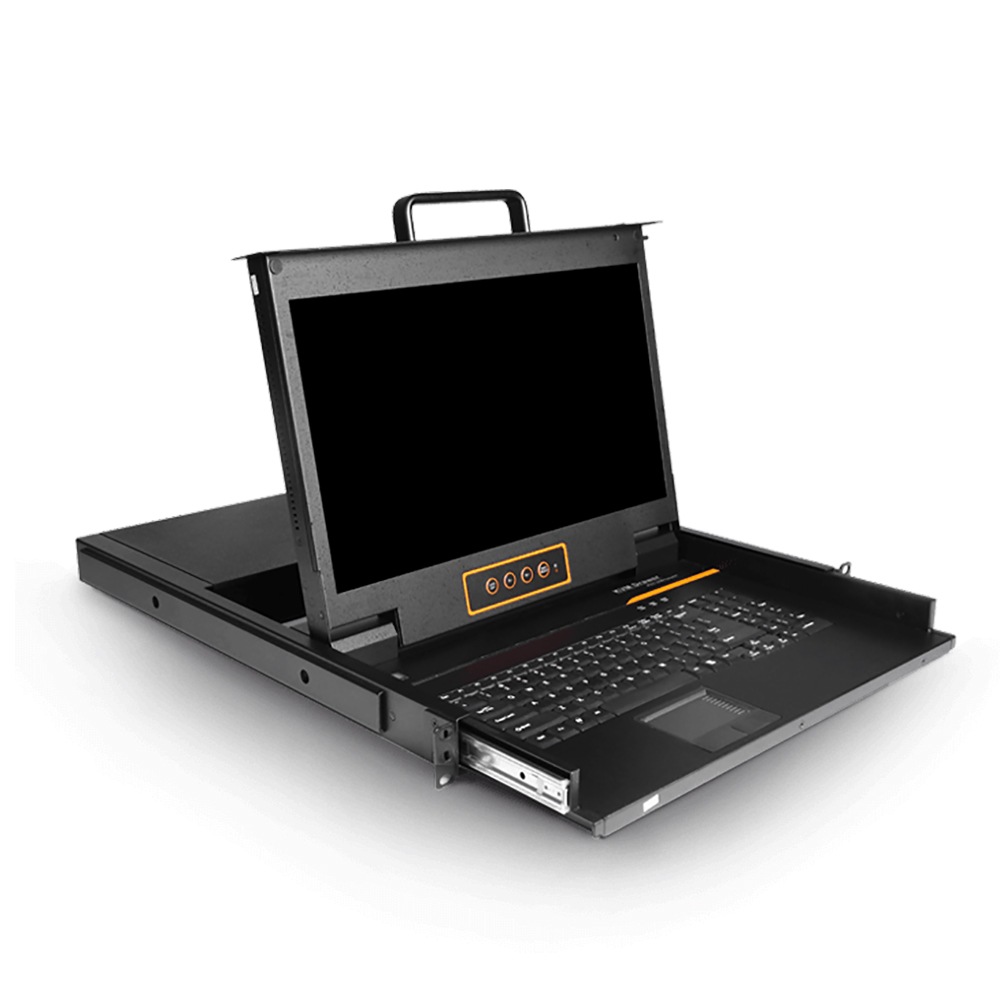

LD1701
Rackmount 17” Widescreen FHD DVI KVM Console
Description
| Model | LD1701 | |
| Computer Connections | Direct | 1 |
| Max | 1 | |
| LCD monitor | LCD model | FHD TFT |
| View area | 17.3 " | |
| Optimum resolution | 1920x1080@60Hz | |
| Display color | 262K | |
| Brightness | 300cd/m² (T y p) | |
| Contrast ratio | 800: 1 (T y p) | |
| Pixel pitch(mm) | 0.1989(H) × 0.1989(W) | |
| Mouse | X/Y resolution | >1000 points / inch, (40 points/mm) |
| Touchpad with Scroll wheel | Support scroll wheel function | |
| Keyboard | 99 keys (82 keys main keyboard +17 independent small numeric keyboard) |
|
| DVI Signal | DVI-D | |
| Port Selection | pushbuttons, hotkeys, OSD | |
| Input power | 100V-240Vac, 50-60Hz, <1.5A | |
| Power consumption | 17W | |
| Operating temperature | 0— 50 ℃ | |
| Store temperature | -20 — 60 ℃ | |
| Humidity | 0~80% RH, non-condensing | |
| Net weight | 11.7kg | |
| Product dimension (W × D × H) | 448mm × 525.6mm× 42.5mm | |
| Package dimension (W × D × H) | 765mm×615mm×185mm | |
| Optional power input | -36V—-72V DC | |
| Optional power input | 20-30VDC | |
