LC2824

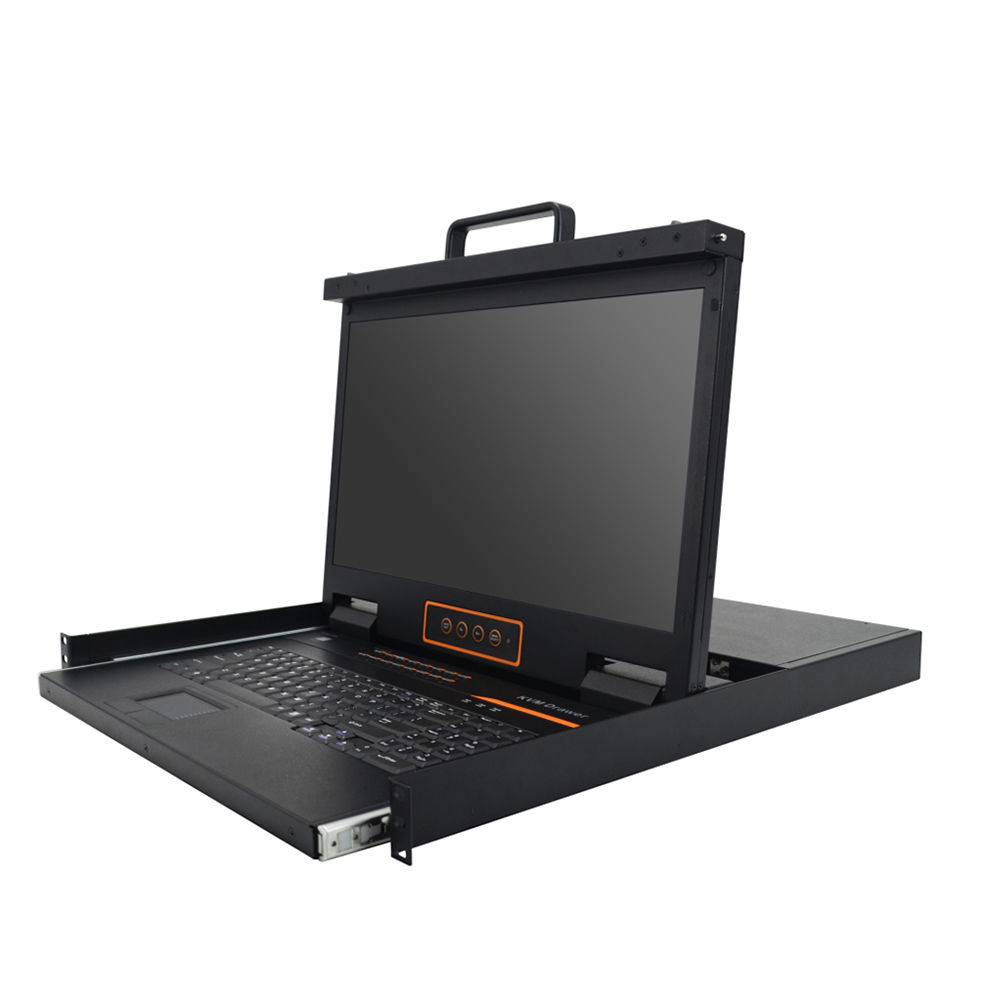

24-Port Short Depth CAT5 18.5” Widescreen LCD KVM Switch
Description
| Model | LC2824 | |
| Computer connections | Direct | 24 |
| Max | 768 | |
| Port emulation | Keyboard, mouse | PS/2, USB |
| LCD monitor | LCD model | FHD TFT |
| View area | 18.47″ | |
| Optimum resolution | 1920×1080@60Hz | |
| Display color | 16.7 M | |
| Brightness | 250cd/m² (T y p) | |
| Contrast ratio | 1000: 1 (T y p) | |
| Pixel pitch(mm) | 0.213(H) × 0.213(W) | |
| Mouse | X/Y resolution | >1000 points / inch,（ 40 points/mm ） |
| Touchpad with trackball | Eliminates the need for an external mouse | |
| Keyboard | 99 keys (82 keys main keyboard +17 independent small number pad) | |
| Port selection | Front panel pushbuttons, hotkeys, OSD menu | |
| Input power | 100V- 240Vac, 50-60Hz, <1.5A | |
| Power consumption | 31W | |
| Operating temperature | 0 — 50 ℃ | |
| Store temperature | -20 — 60 ℃ | |
| Humidity | 0~80% RH, non-condensing | |
| Net weight | 12kg | |
| Product dimension (W × D × H) | 448mm×560mm×42.5mm | |
| Package dimension (W × D × H) | 765mm×615mm×185mm | |
| Optional power input | -36V~ -72V DC | |
