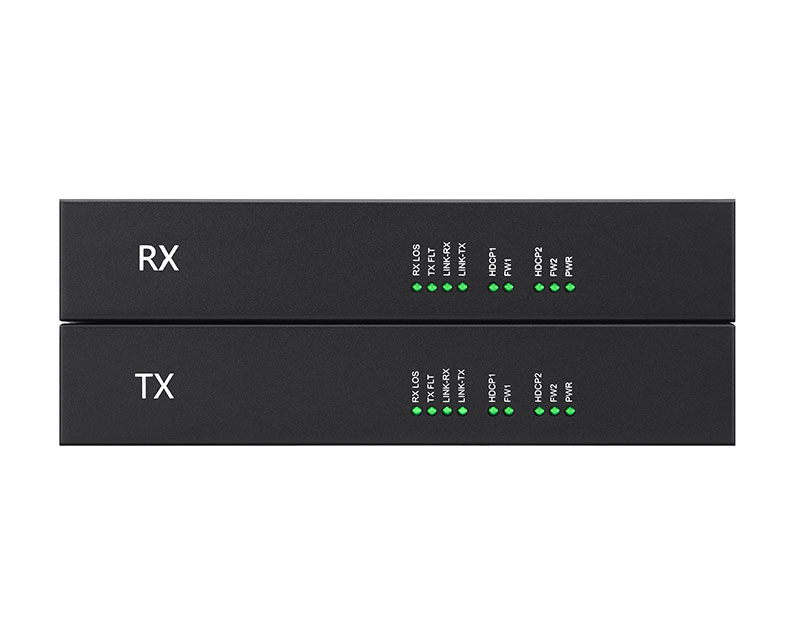

KFH201S
USB Dual HDMI over Fiber KVM Extender-10km
Description
| Model No. | KFH201S_TX | KFH201S_RX | |
| Connector | HDMI Input | 2 | NA |
| HDMI Output | 2 | 2 | |
| Power | 12V | 12V | |
| Fiber Module | SFP+ x 1 | SFP+ x 1 | |
| Microphone | 3.5MM Stereo Jack (Pink) |
3.5MM Stereo Jack (Pink) |
|
| Speaker | 3.5MM Stereo Jack (Green) |
3.5MM Stereo Jack (Green) |
|
| USB Type B | 1 | N/A | |
| USB 2.0 | N/A | USB x 4 | |
| Resolution | Single-channel: 4K@60Hz (YCbCr 4:2:0) Dual-channel: 1920 X 1200 @ 60 Hz |
||
| Connection Cable | Fiber cable | ||
| Power Input | DC12V / 2A | DC12V / 2A | |
| Power Consumption | 16.5W | 14.5W | |
| Operating Temperature | 0 ~ 50 ℃ | ||
| Storage Temperature | -20 ~ 60 ℃ | ||
| Humidity | 0~80% RH, Non-condensing | ||
| Material | Metal | ||
| Net Weight (kg) | 0.85 kg | 0.85kg | |
| Product Dimension (W × D × H) |
214 mm x 113.5 mm x 44mm | ||
| Package Dimension (W × D × H) |
260 mm x 102 mm x 179mm | ||
