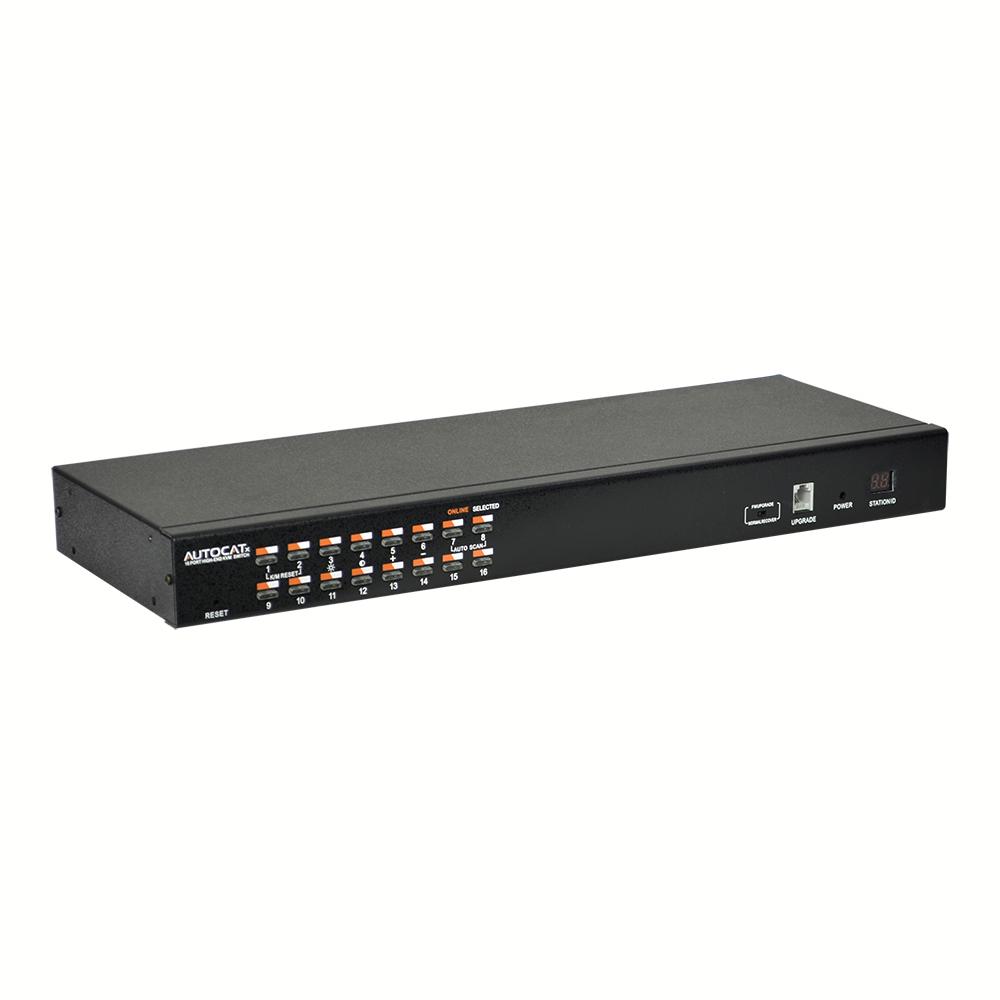

KC2116
Rack Mount 16 port USB CAT5 KVM Switch
Description
| Model | KC2116 | ||
| Direct | 16 | ||
| Max | 512 | ||
| Port Selection | LED buttons, OSD menu | ||
| Connector | Console | Monitor Keyboard Mouse |
1x HDB-15 Female(blue) 2x USB TYPE A |
| KVM port (RJ45) | 16 | ||
| Upgrading switch | 1x RJ11 Female | ||
| Power | 3-Prong AC socket | ||
| Switch | Port Selecting (buttons) | 16 | |
| Reset | 1x tuch-button | ||
| Upgrading switch | 1x pull switch | ||
| Power | 1x rocker switch | ||
| Indicating LEDs | Online (green) | 16 | |
| Selected(orange) | 16 | ||
| Power | 1(blue) | ||
| Cascading/port display | 2*7- Segment (orange) | ||
| Input power | 100V- 240Vac, 50-60Hz, <1.5A | ||
| Resolution (Optimum) | 1920x1080@60Hz | ||
| Power Consumption | 5W | ||
| Emulation | Keyboard/Mouse | PS/2, USB | |
| Environment Requirements | Working Temperature | 0-50℃ | |
| Store Temperature | -20-60℃ | ||
| Humidity | 0-80%RH, Non-condensing | ||
| Physical Features | Material | Metal | |
| Weight | 2.7kg | ||
| Dimension | 433x171x44.5mm | ||
