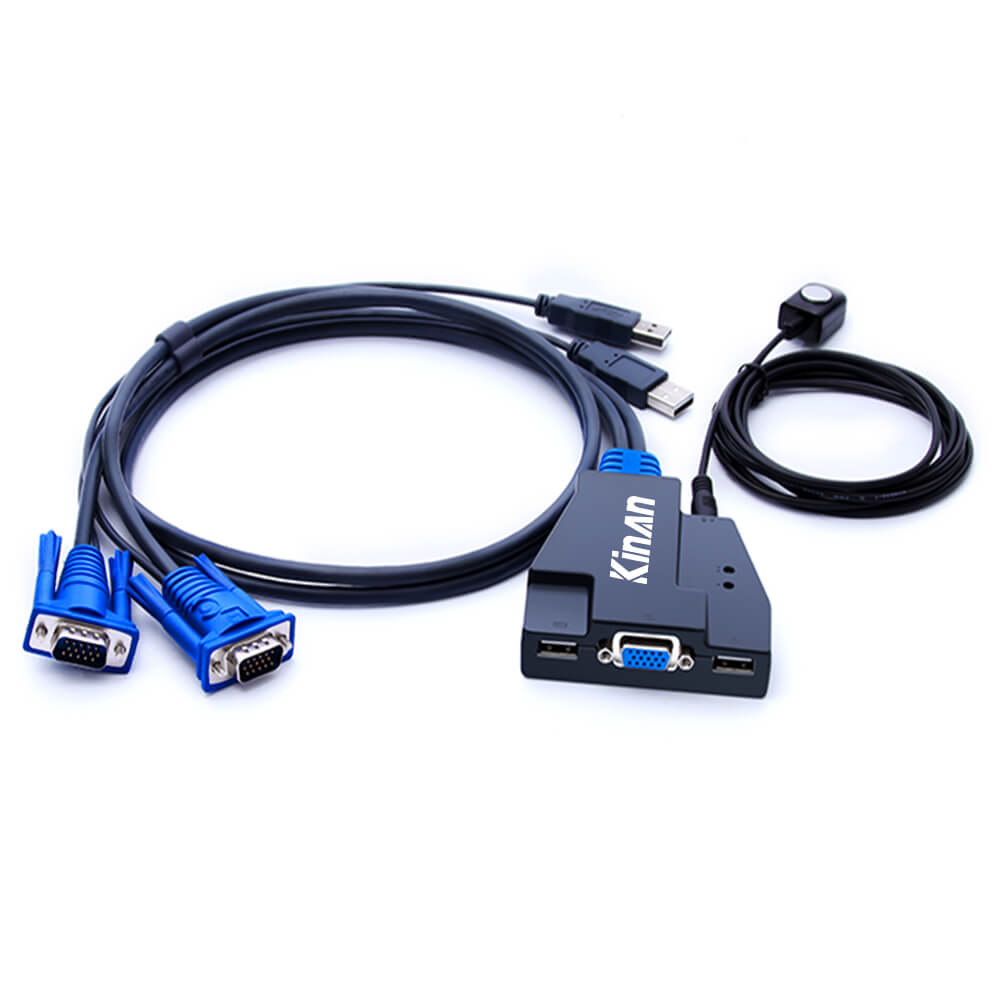

KA1302
2 port VGA KVM switch
Description
| Model | KA1302 | ||
| Computer Connections | 2 | ||
| Port Selection | pushbuttons, hotkey | ||
| Connector | Console | Monitor | 1x HDB-15 Female(Blue) |
| Keyboard | 1x USB type A | ||
| Mouse | 1x USB type A | ||
| KVM port | Monitor | 1x HDB-15 Female(Blue) | |
| Keyboard | 1x USB type B (White) | ||
| Mouse | 1x USB type B (White) | ||
| Cable Length | KVM cable | 900mm | |
| Remote switch cable | 1800mm | ||
| LEDs | Selected | 2 (green) | |
| Video Resolution | 2048x1536 | ||
| Power Consumption | 2W | ||
| Environment | Operating Temperature | 0~50℃ | |
| Storage Temperature | -20~60℃ | ||
| Humidity | 0~80%RH, non-condensing | ||
| Physical Features | Material | Plastic | |
| Weight | 0.25kg | ||
| Dimension | 78mm x 80mm x 21.7mm | ||
