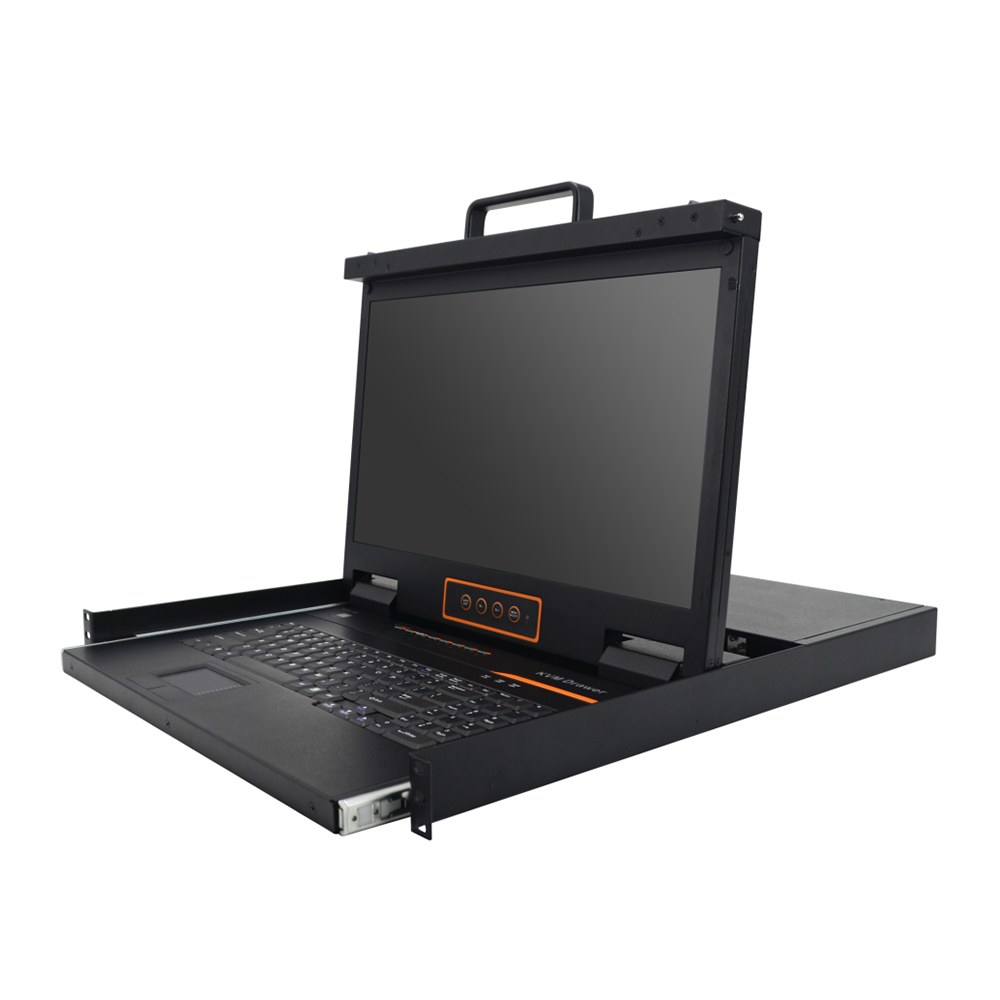

HT6808
18.5” 8 Port Widescreen CAT5 LCD KVM over IP Switch 1-Local / 2-Remote Access
Description
Model | HT6808 | |
Computer Connections | Direct | 8 |
Max | 8 | |
Port Selection | Keyboard, Mouse | Button, UI, Web, Hotkey |
LCD Monitor | Model | FHD TFT |
View Area | 18.47" | |
Optimum Resolution | 1920x1080@60Hz | |
Color | 16.7 M (Typ) | |
Brightness | 250cd/m²( T y p ) | |
Contrast Ratio | 1000: 1 | |
Pixel Pitch(mm) | 0.213(H) × 0.213(W) | |
Mouse | X/Y Resolution | >1000 points / inch, (40 points/mm) |
Scroll Wheel | Supports Scroll Wheel function | |
Keyboard | 99 keys (82 keys main keyboard +17 independent small numeric keyboard) | |
Remote | Remote Control | KVM Control (ActiveX) |
Management | Web | |
Security | DES Encrypted | |
Resolution | 1920×1080@60Hz | |
Power Input | 100V- 240Vac, 50-60Hz, <1.5A | |
Mounting distance | 686-770mm (L=262mm) Mounting bracket can be customized for other mounting distance |
|
Power Consumption | 37W | |
Operating Temperature | 0 — 50 ℃ | |
Store Temperature | -20 —60 ℃ | |
Humidity | 0~80% RH, non-condensing | |
Net Weight | 11.9kg | |
Product Dimension (W × D × H) | 448mm×560mm×42.5mm | |
Package Dimension (W × D × H) | 765mm × 615mm × 185mm |
