HT5832

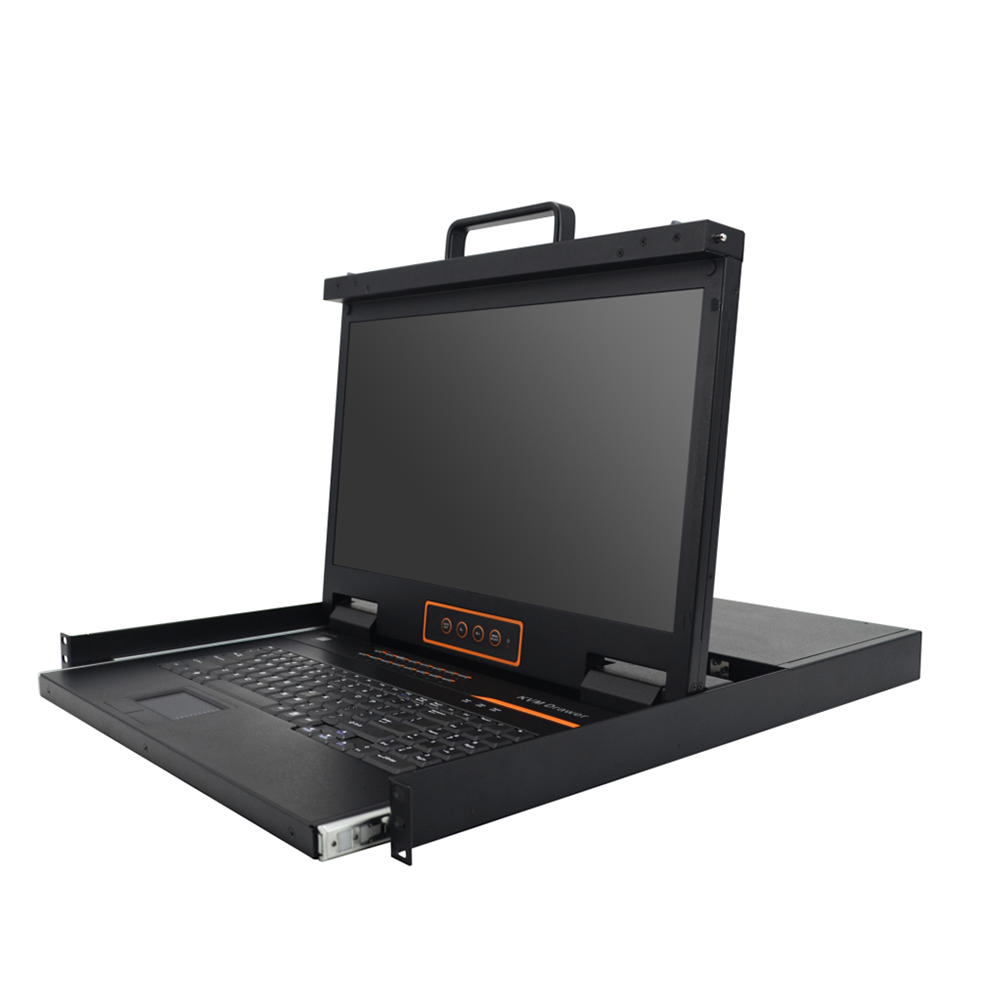

18.5＂ 32 Port CAT5 LCD KVM over IP Switch 1-Local / 2-Remote Access
Description
| Model | HT5832 | |
| Computer Connections | Direct | 32 |
| Max | 32 | |
| Port Selection | Keyboard, Mouse | Button, UI, Web, Hotkey |
| LCD Monitor | Model | WXGA TFT |
| View Area | 18.51" | |
| Optimum Resolution | 1366x768@60Hz | |
| Color | 16.7 M (Typ) | |
| Brightness | 250 cd/m² (Typ) | |
| Contrast Ratio | 1000: 1 | |
| Pixel Pitch(mm) | 0.300(H) × 0.300(W) | |
| Mouse | X/Y Resolution | >1000 points / inch, (40 points/mm) |
| Scroll Wheel | Supports Scroll Wheel function | |
| Keyboard | 99 keys (82 keys main keyboard +17 independent small numeric keyboard) | |
| Remote | Remote Control | KVM Control (ActiveX) |
| Management | Web | |
| Security | DES Encrypted | |
| Resolution | 1920×1080@60Hz | |
| Power Input | 100V- 240Vac, 50-60Hz, <1.5A | |
| Mounting distance | 686-770mm (L=262mm) Mounting bracket can be customized for other mounting distance |
|
| Power Consumption | 35W | |
| Operating Temperature | 0 — 50 ℃ | |
| Store Temperature | -20 —60 ℃ | |
| Humidity | 0~80% RH, non-condensing | |
| Net Weight | 11.9kg | |
| Product Dimension (W × D × H) | 448mm×560mm×42.5mm | |
| Package Dimension (W × D × H) | 765mm × 615mm × 185mm | |
