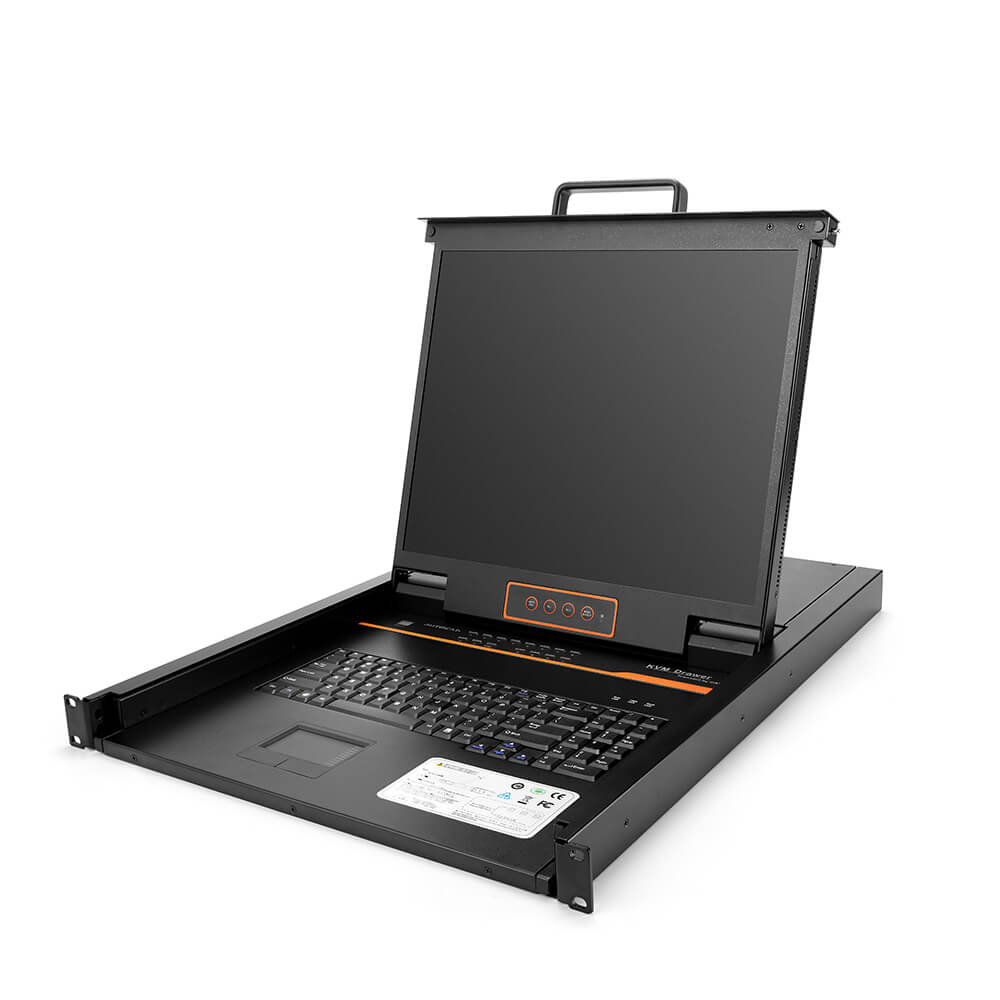

HT1932
19" 32 Port CAT5 LCD KVM over IP Switch 1-Local / 1-Remote Access
Description
Model | HT1932 | |
Computer Connections | Direct | 32 |
Max | 32 | |
Port Selection | Keyboard, Mouse | Button, UI, Web, Hotkey |
LCD Monitor | Model | SXGA TFT |
View Area | 19 " | |
Optimum Resolution | 1280×1024@60Hz | |
Color | 16.7 M | |
Brightness | 250 cd/m² | |
Contrast Ratio | 1000: 1 | |
Pixel Pitch(mm) | 0.2928(H) × 0.2928(W) | |
Mouse | X/Y Resolution | >1000 points / inch, (40 points/mm) |
Scroll Wheel | Supports Scroll Wheel function | |
Keyboard | 99 keys (82 keyboard + 17 number pad) | |
Remote | Remote Control | KVM Control (ActiveX) |
Management | Web | |
Security | DES Encrypted | |
Resolution | 1920×1080@60Hz | |
Power Input | 100V- 240Vac, 50-60Hz, <1.5A | |
Power Consumption | 29W | |
Operating Temperature | 0 — 50 ℃ | |
Store Temperature | -20 —60 ℃ | |
Humidity | 0~80% RH, non-condensing | |
Net Weight | 13.6kg | |
Product Dimension (W × D × H) | 448mm × 605mm × 42.5mm | |
Package Dimension (W × D × H) | 765mm × 615mm × 185mm |
