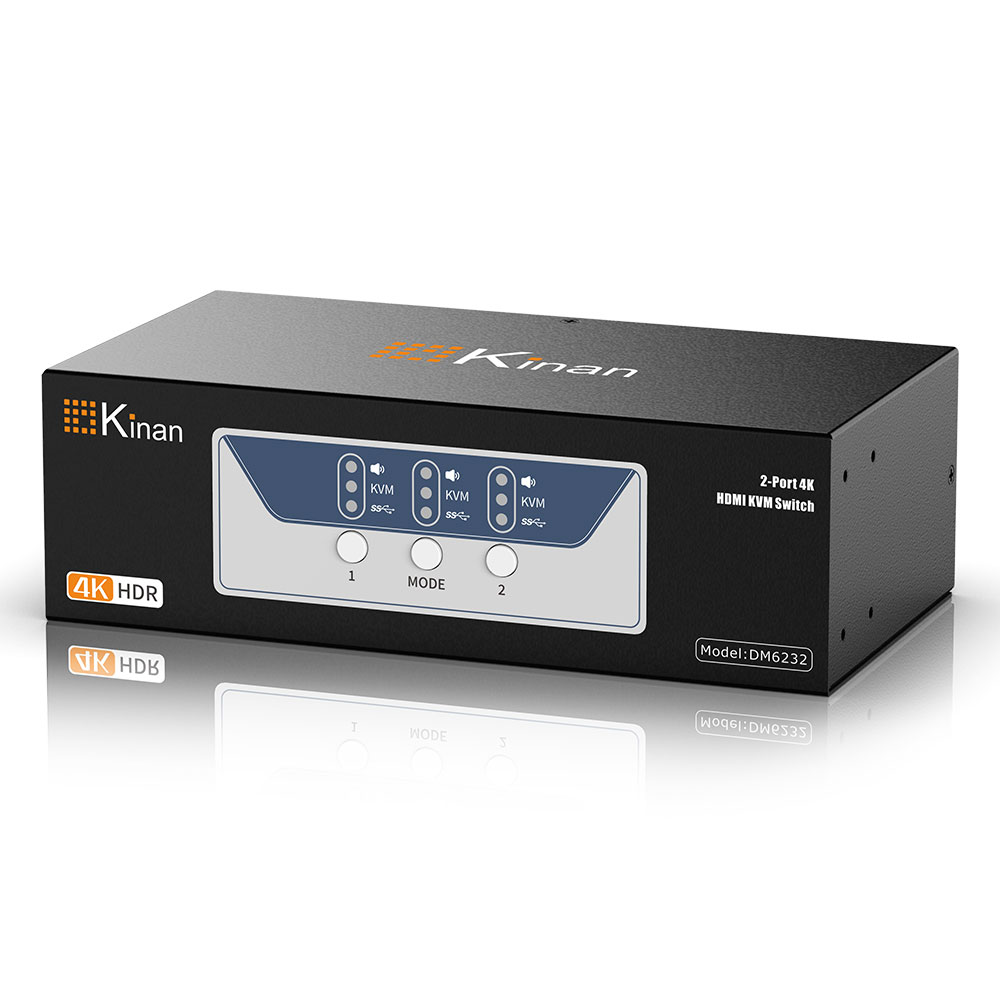

DM6232
2-Port 4K USB3.0 HDMI Dual Display KVM Switch
Description
| Model | DM6232 | ||||
| Computer Connections | 2 | ||||
| Port Selection | Pushbutton; Hotkey; Mouse | ||||
| Connectors | Console | Monitor | 2x HDMI | ||
| Keyboard/mouse | 2 x USB type A (White) | ||||
| Microphone (Pink) | 1x 3.5mm audio port | ||||
| Speaker (Green) | 1x 3.5mm audio port | ||||
| KVM | Display input | 4x HDMI | |||
| USB input | 2x USB3.0 type B (White) | ||||
| Microphone (Pink) | 2x 3.5mm Audio port | ||||
| Speaker (Green) | 2x 3.5mm Audio port | ||||
| USB2.0 port | 1x USB type A (White) | ||||
| Switch | Menu selection) | 3 * Buttons | |||
| LED | Audio Mic | 3 * (Green) | |||
| KVM | 3 * (Green) | ||||
| USB | 3 * (Green) | ||||
| Power Input | 12V/ 2A | ||||
| Video Resolution | 4096×2160@60Hz (4K DCI/60Hz) 3840×2160@60Hz (4K UHD/60Hz) |
||||
| Power Consumption | 4W | ||||
| Environmental Requirement | Operating Temperature | 0-50℃ | |||
| Storage Temperature | -20-60℃ | ||||
| Humidity | 0-80%RH, Non-condensing | ||||
| Physical Features | Material | Metal | |||
| Weight | 1kg | ||||
| Product Dimension (W×D× H) | 210mmx 109.2mm x 66mm | ||||
| Package Dimension (W×D× H) | 395mm x 274mm x 110mm | ||||
