DL2932

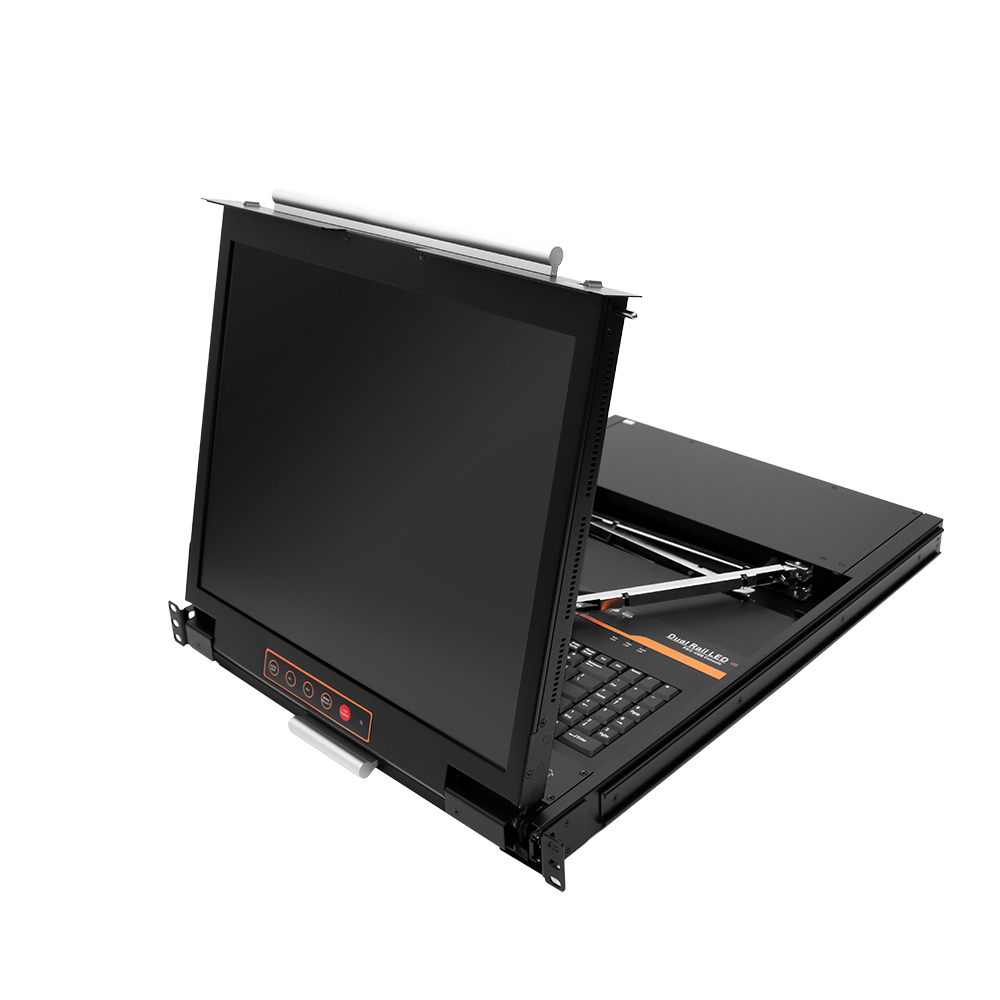

32-Port Cat5 Dual Rail LCD KVM Switch with 19 in. LCD
Description
| Model | DL2932 | |
| Computer connections | Direct | 32 |
| Max | 1024 | |
| Port emulation | Keyboard, mouse | PS/2, USB |
| LCD monitor | LCD model | SXGA TFT |
| View area | 19 " | |
| Optimum resolution | 1280×1024@60Hz | |
| Display color | 16.7 M | |
| Brightness | 250cd/m² (T y p) | |
| Contrast ratio | 1000: 1 (T y p) | |
| Pixel pitch(mm) | 0.2928(H) × 0.2928(W) | |
| Mouse | X/Y resolution | >1000 points / inch, (40 points/mm) |
| Touchpad with scroll wheel | Eliminates the need for an external mouse | |
| Keyboard | 99 keys (82 keys main keyboard +17 independent small numeric keyboard) |
|
| Port selection | Pushbuttons, hotkeys, OSD menu, mouse | |
| Input power | 100V – 240Vac, 50 ~ 60Hz, <1.5A | |
| Power consumption | 23W | |
| Operating temperature | 0 – 50 ℃ | |
| Store temperature | -20 – 60 ℃ | |
| Humidity | 0 – 80% RH, non-condensing | |
| Net weight | 14 kg | |
| Product dimension (W × D × H) | 448mm×605mm×43.5mm | |
| Package dimension (W × D × H) | 765mm×615mm×185mm | |
| Optional power input | -36V– -72V DC | |
