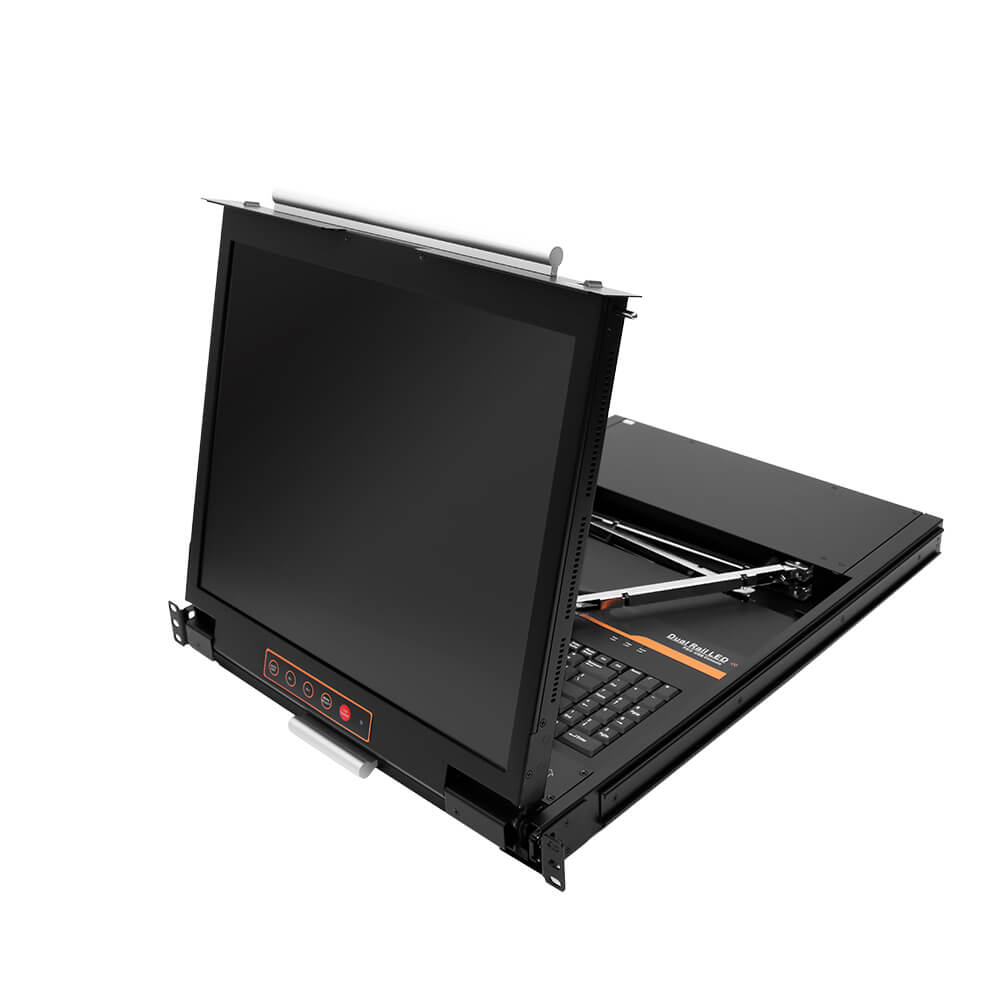

DL1901
19＂Rack Mount Dual Rail LCD Console
Description
| Model | DL1901 | |
| Computer connections | Direct | 1 |
| Maximum | 1 | |
| Port emulation | Keyboard, mouse | PS/2, USB |
| LCD monitor | LCD model | SXGA TFT |
| View area | 19″ | |
| Optimum resolution | 1280×1024@60Hz | |
| Display color | 16.7 M | |
| Brightness | 250cd/m² (T y p) | |
| Contrast ratio | 1000: 1 (T y p) | |
| Pixel pitch (mm) | 0.2928(H) × 0.2928(W) | |
| Mouse | X/Y resolution | >1000 points / inch (40 points/mm) |
| Touchpad | Eliminates the need for an external mouse | |
| Keyboard | 99 keys (82 keys main keyboard +19 independent small number pad) |
|
| Input power | 100V- 240Vac, 50-60Hz, <1.5A | |
| Power consumption | 18W | |
| Mounting distance | 610~950mm (L=420mm) Mounting rails can be customized for other mounting distance. |
|
| Operating temperature | 0— 50 ℃ | |
| Store temperature | -20 — 60 ℃ | |
| Humidity | 0- 80% RH, non-condensing | |
| Net weight | 13.5kg | |
| Product dimension (W × D × H) | 448mm×605mm×43.5mm | |
| Package dimension (W × D × H) | 765mm×615mm×185mm | |
| Optional power input | -36V~ -72V DC | |
