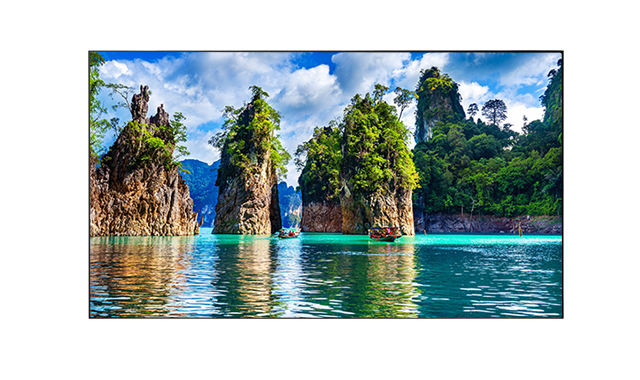

WW55B/2HB
-
Display
-
Screen Size
55"
-
Panel Technology
IPS
-
Backlight Type
DLED
-
Brightness (typical)
500 cd/m2
-
Native Resolution
1920x1080
-
Contrast Ratio (typical)
1100 : 1
-
Dynamic Constrast Ratio
500000 : 1
-
Life Time (typical)
100000 hrs
-
Response Time (typical)
8 ms
-
Active Area (H x V)
1212.2(H) x 683(V) mm
-
Pixel Pitch (H x V)
0.630 x 0.630
-
Viewing Angle
178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
-
Color Value
1.07 B (10-bit)
-
Screen Treatment
3H
-
Haze Level
28%
-
Refresh Rate
60 Hz
-
Front Type
Extra narrow bezel
-
Orientation
Horizontal / Vertical
-
Operation Hours
24/7 Panel
-
Area of Usage
Indoor
-
-
Built-in System
-
Mainboard Model
17MB135VS
-
-
Rear Connections / Interface
-
RGB Input
VGA(DE-15F)
-
RGB Output
N/A
-
Video Input
2xHDMI2.0, 2xUSB2.0
-
Video Output
1xHDMI2.0
-
Audio Input
Line In L/R
-
Audio Output
Headphone, Optic SPDIF
-
External Control
RS232(DE-9F), Ethernet(RJ45), Service(RJ12)
-
External Sensor
RJ12
-
-
Environmental Conditions
-
Operating Temperature
+50°C / 0°C
-
Operating Humidity
90%
-
-
Power
-
Power Supply
110 VAC - 240 VAC
-
-
Power Consumption
-
Typical
138 W
-
Maximum
260 W
-
Deep Standby
0.5W<
-
-
Mechanical Features
-
Size
1212.2 (W) x 105.4 (D) x 683 (H) mm
-
Shipping Size
1366 (W) x 277 (D) x 836 (H) mm
-
Weight (kg)
27 kg
-
Shipping Weight (kg)
37 Kg
-
Vesa Mounting Size
400 x 600
-
Bezel Width
1.8 mm (L/U/R/D: 1.3/1.3/0.44/0.44 mm)
-
-
Features
-
Main Features
Videowall setup with Daisy-Chain, Open Content Management Support, Manual Fine Color Calibration, Videowall Scheduler, Auto-Launch, Auto-switch on Failover, Panel Lock
-
Speaker
N/A
-
-
Accessory
-
Standard
QSG, IB, Power Cord, Remote Control, RC Battery, Display Port Cable, USB to Rs232 Converter
-
Mounting Kit
Standard
-
-
Certification
-
Safety
-
EMC
-
CE
-
-
