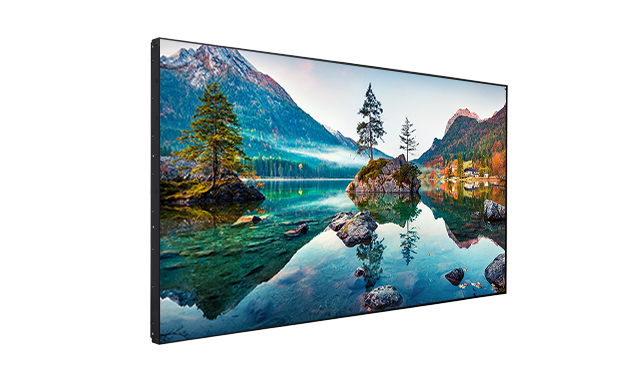

WU49B-2H
Mur d'image 46" IPS 500 cd/m² 3.5 mm bord-à-bord, usage 24/7
Description
-
Display
-
Screen Size
49"
-
Panel Technology
IPS
-
Backlight Type
DLED
-
Brightness (typical)
500 cd/m2
-
Native Resolution
1920x1080
-
Contrast Ratio (typical)
1200 : 1
-
Dynamic Constrast Ratio
500000 : 1
-
Life Time (typical)
60000hrs
-
Response Time (typical)
8 ms
-
Active Area (H x V)
1073.8 (H) x 604 (V)
-
Viewing Angle
178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
-
Color Value
1.07 B (10-bit)
-
Screen Treatment
2H
-
Haze Level
3%
-
Refresh Rate
60 Hz
-
Front Type
Ultra narrow bezel
-
Orientation
Horizontal / Vertical
-
Operation Hours
24/7 Panel
-
Area of Usage
Indoor
-
-
Built-in System
-
Mainboard Model
17MB135VS
-
-
Rear Connections / Interface
-
RGB Input
VGA(DE-15F)
-
RGB Output
N/A
-
Video Input
2xHDMI2.0, 2xUSB2.0, USB2.0(Internal)
-
Video Output
HDMI2.0
-
Audio Input
Line In L/R
-
Audio Output
Headphone, Optic SPDIF
-
External Control
RS232(DE-9F), Ethernet(RJ45), Service(RJ12)
-
External Sensor
RJ12
-
-
Environmental Conditions
-
Operating Temperature
+50°C / 0°C
-
Operating Humidity
%90
-
-
Power
-
Power Supply
110 VAC - 240 VAC
-
-
Power Consumption
-
Typical
108 W
-
Maximum
120 W
-
Deep Standby
0.5W<
-
-
Mechanical Features
-
Size
1077.6 (W) x 110.6(D) × 607.8 (H) mm
-
Shipping Size
1223 (W) x 269 (D) x 756 (H) mm
-
Weight (kg)
28.1
-
Shipping Weight (kg)
34.1
-
Vesa Mounting Size
400 x 600
-
Bezel Width
3.5 mm
-
-
Features
-
Main Features
Videowall setup with Daisy-Chain, Open Content Management Support, Manual Fine Color Calibration, Videowall Scheduler, Auto-Launch, Auto-switch on Failover, Panel Lock
-
Mechanical Features
ON/OFF Button, IR Extender, Carrying Handles , OPS option (with a costup)
-
Speaker
N/A
-
