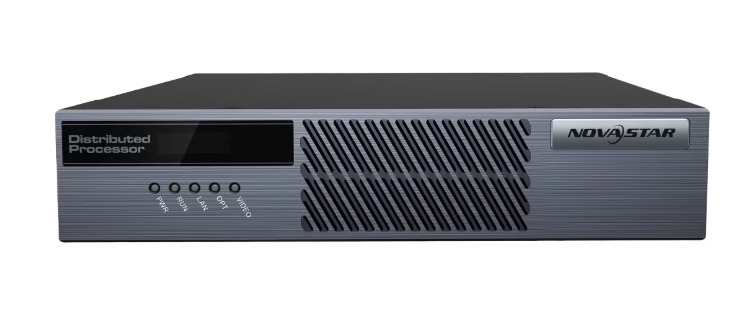

NovaStar MG201 Decoder
Décodeur NovaStar MG201 utilisé pour le décodage vidéo, le contrôle d'affichage et KVM.
Description
Comparaison AVoIP 2K de la série NovaStar MG
| Product | MGT200 Encoder | MGT201 Decoder | MGT600 All-in-One Decoder |
| CODEC | 1× 2K@60Hz Encode | 1× 4K×2K@30Hz or 2× 1920×1080@60Hz or 4× 1920×1080@30Hz Decode |
1× 4K×2K@30Hz or 2× 1920×1080@60Hz or 4× 1920×1080@30Hz Decode |
| Video Port | 1× HDMI1.3 Input; 1× LOOP Output, HDMI1.3 Output; Supports MAX 2K@60Hz; MAX Input Resolution 4096×4096 |
1× HDMI1.3 Output; Supports MAX 2K@60Hz; Custom Resolution, MAX Capacity 4096×4096 |
6× RJ45 LED Output; Custom Resolution, MAX Capacity 10240×8192; Total Capacity 390W |
| Audio Port |
1× 3.5mm Stereo Input/Output; Support Audio and Video Synchronous/Asynchronous Output
|
||
| OPT/LAN Port |
1× LAN
|
||
|
USB Port
|
1× USB-A; 1× USB-B;
Used for control signal transmission. |
2× USB-A 2.0;
Supports KVM keyboard and mouse access. |
2× USB-A 2.0
|
|
Third-party Port
|
Not Support
|
||
|
Others
|
Video Encoding
|
Video Decoding, KVM, Display Control |
Video Decoding, LED Display Control, Free Cabling |
|
Algorithm &
Protocol |
Supports H.265, H.264 decoding mode, and support H264/H 265 optional;
Supports uncompressed audio stream or AAC decoding; Supports access to audio and video data conforming to protocols such as TCP, UDP, RTSP, RTP and ONVIF |
||
