C1.86

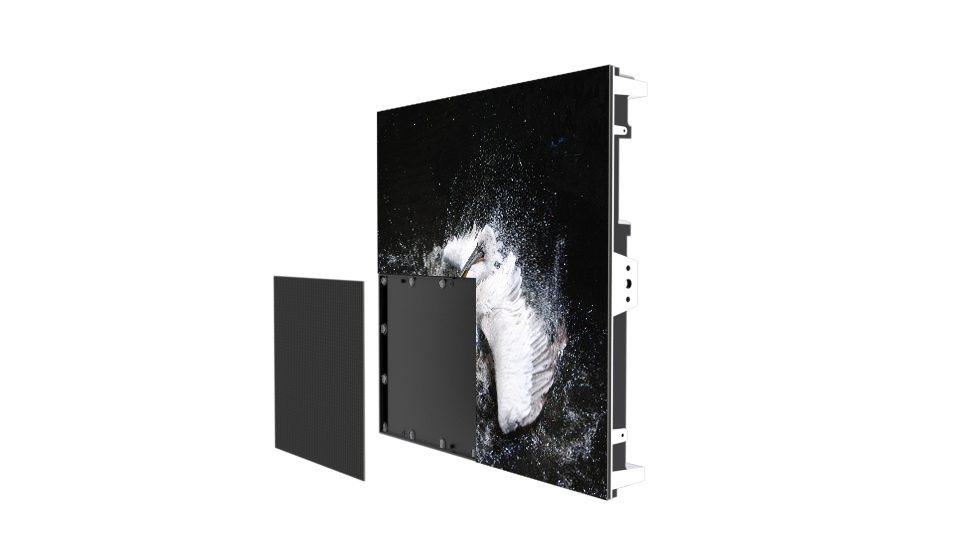

Ecran LED indoor ITC pitch 1.86mm SMD1515 black light
Description
Paramètres du produit
| Module | C1.53 | C1.86 |
| LED encapsulation | SMD1212 black light | SMD1515 black light |
| Pixel pitch | 1.53mm | 1.86mm |
| Resolution | 422500 pixels/m² | 288906 pixels/m² |
| Lamp bead/IC | Domestic high-quality copper wire/high refresh rate | |
| Pixel configuration | 1R1G1B | |
| Module resolution | 208*104 | 172*86 |
| Module size (mm) | 320*160 | 320*160 |
| Module weight | ≤0.48Kg/pc | |
| Working voltage | DC+4.2V~+5V | |
| Main parameters | ||
| Best viewing distance | ≥4.6m | ≥5.5m |
| Horizontal viewing angle | ≥175° | |
| Vertical viewing angle | ≥175° | |
| Maintenance method | Front/rear maintenance | |
| Control mode | Synchronous control | |
| Drive device | Constant current | |
| Refresh rate | ≥4200Hz | |
| Frame rate | ≥60Hz | |
| Scanning method | 52S | 58S |
| Brightness | 200-800CD/m² | |
| Grayscale | 12/14/16/18bit | |
| Contrast | ≥10000:1 | |
| Attenuation rate (after working for 3 years) | ≤15% | |
| Brightness adjustment method | Auto/manual: 0-100% | |
| MTBF | ≥20000H | |
| Lifespan | ≥100000H | |
| Failed rate | ≤1/100000 and no continuous failed pixels | |
| Storage temperature | -35℃~+85℃ | |
| Working temperature | -20℃~+60℃ | |
| Working voltage (AC) | 220V±10%/50Hz/60Hz | |
| Average power consumption | ≤125W/m² at 800CD/m² (≤95W/m² at 600CD/m²) | |
| Maximum power consumption | ≤500W/m² at 800CD/m² (≤380W/m² at 600CD/m²) | |
| Installation method | Magnetic installation | |
| Brightness uniformity | ≥99% | |
| Protection class | IP5X | |
