WMS504

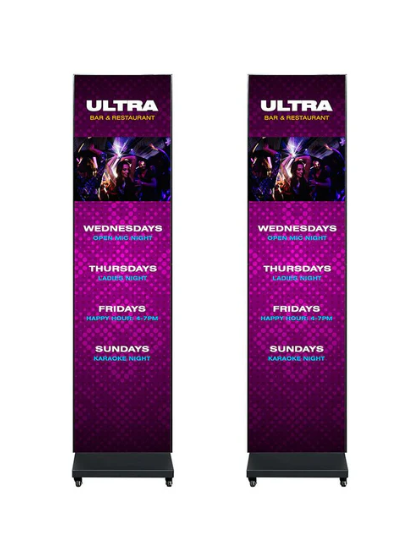

The ADJ Lighting WMS2 Media Sys DC is a versatile LED display solution built for maximum visual impact. It includes two WMS2 Media Systems on rolling bases, each with a built-in Novastar processor, and a rugged flight case that securely transports both systems. These systems can function independently or be linked together for an expanded display area. With a 2.6mm pixel pitch, vibrant visuals, and an effortless setup, it's perfect for retail, events, and dynamic digital signage applications.
System includes:
2x WMS2 Media System: 4x WMS2 LED Video Panels
2x Display Stand with Built-In Novastar Video Processors
1x Dual System Flight Case
System includes:
2x WMS2 Media System: 4x WMS2 LED Video Panels
2x Display Stand with Built-In Novastar Video Processors
1x Dual System Flight Case
Description
Specifications
Specifications:
• Pixel Pitch (mm): 2.6
• Pixel Density (dot/m2): 147,456
• LED sealing Type: SMD1515
• Module Size (mm x mm): 250 x 250mm
• Module Resolution (PX x PX): 96 x 96 Dots
• Panel Resolution (PX x PX): 384 x 192
• Average Life (Hours): 50,000
Features:
• Transport: Dual System Flight Case
• Two WMS2 Media Systems
• Installation Method: Roll and Set
• Maintenance: Front
• Configuration*: CFD455, 3840Hz.
Optical Ratings:
• Brightness (cd/m2): 700-800nits
• Horizontal Viewing Angle (Deg): 160
• Vertical Viewing Angle (Deg): 140
• Grey Scale (Bit): ≥14
• Refresh Rate (Hz): 3840
Power Supply:
• Input Voltage (V): 100-240VAC
• Max Power Dissipation (W/m²): 520 (Per System)
• Average Power consumption (W/m²): 180 (Per System)
Control System:
• Receiving Card in WMS2 Panels: Novastar A8s-N
• Processor: Novastar TB50 (One in each system)
Environmental:
• Working Environment: Indoor
• IP Rating: IP20
• Working Temperature (℃):-20~ +40
• Work humidity (RH): 10%~90%
• Storage temperature range:-40~ +80
• Operation humidity (RH):10%~90%
Weight / Dimensions:
• Flight Case Dimensions (LxWxH): 51" x 37" x 27.25" (1290 x 934 x 689.52mm)
• System Dimensions (WxH): 19.75" x 84.75" (500 x 2150mm)
• LED Panel Thickness: 1.32" (33.4mm)
• System Weight (In Flight Case): 265lbs. (120kg)
Approvals:
• Certificates: WMS2 LED Panels are ETL Certified
Specifications are subject to change without notice.
