Long 6 kVA 1/1

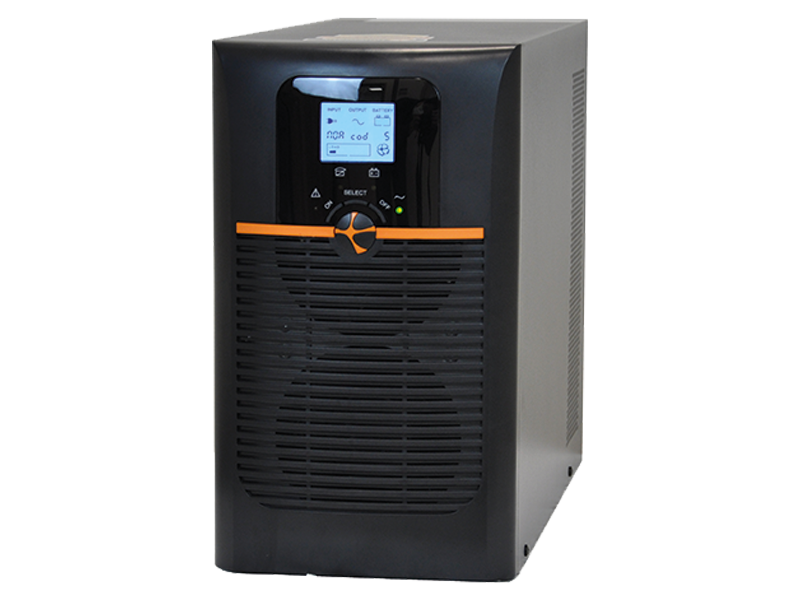

Onduleur ONLINE UPS 6 KVA
Description
LOGIN
| Rated Voltage | 208/220/230/240VAC |
| Low Voltage Transfer | 120~276Vac |
| Low Voltage Correction | 120~276Vac |
| High Voltage Transfer | 276Vac ±5% 320Vac, 1 hour (static) |
| High Voltage Correction | 276Vac ±5% |
| Frequency Range | 45-65 Hz |
| Power Factor | 0.990 @100% load (Rated input voltage) |
| Feeding from Generator | Yes |
EXIT
| Output Voltage | 208/220/230/240Vac |
| Power Factor | 0.9 |
| Voltage Regulation | ±1% (Battery Mode) |
| Frequency Range(Network Mode) | 47-53 Hz or 57-63 Hz |
| Frequency Range (Battery Mode) | (50/60±0.1) Hz |
| Crest Factor | 3/1 |
| Harmonic Distortion (THDv) | ≤2% THD linear load, ≤5% non-linear load |
| Waveform | Full sine wave |
| Transfer Time | AC mode - Battery mode 0 ms, Inverter - Bypass 4 ms (typical) |
| Yield | >90% (AC mode),>88 (DC mode) |
BATTERY
| Number of Batteries | 16/18/20 pieces adjustable |
| Charging Voltage | 219/246/274 Vdc ±1% |
| Charging Current | 6A |
SYSTEM FEATURES
| Overload (Mains Mode) | Ambient temperature <35°C, 105%~110% bypass after 10min, 110%~130% bypass after 1min, >130% bypass after 3sec |
| Overload (Bypass Mode) | 50A (Input fuse) |
| Protection Class | IP20 |
| EPO (optional) | UPS shuts down |
| Voice & Noisy Alarms | Mains error, Battery low, System error |
| Communication Interface | USB (or RS232), SNMP adapter (optional), Relay board (optional) |
ENVIRONMENTAL
| Operating Temperature | 0°C~40°C |
| Storage Temperature | -25°C~55°C |
| Humidity | 20-90 RH @ 0-40°C (non-condensing) |
| Working Height | <1500m |
| Noise Level |
DIMENSIONS & WEIGHT
| DxWxH (mm) | 355x191x330 |
| Weight(kg) | 10 |
STANDARDS
| Security | IEC62040-1, GB4943 |
| Electro Magnetic Compatibility | IEC62040-2, IEC60664-1 1.2/50uS+8/20uS 6kV/3kA are met |
