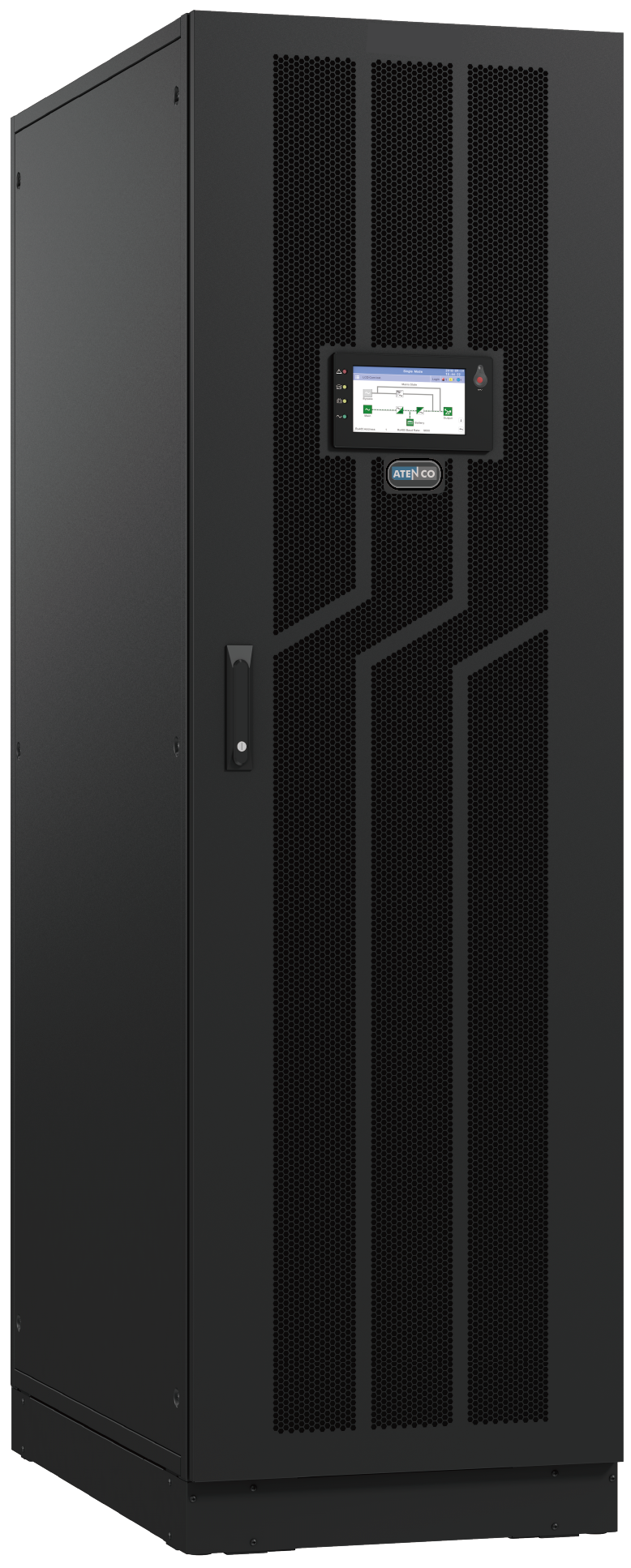

TM66E 30 kVA
TM66E Compact Modular Three-Phase UPS with Built-In Battery Modules 3+1 (10 kVA) / 2+1 (15 kVA)
Description
| Specification | 30 kVA | 45 kVA | 50 kVA | 60 kVA | 75 kVA |
|---|---|---|---|---|---|
| Full Name | TM66E Compact Modular Three-Phase UPS with Built-In Battery Modules | ||||
| Topology | Online Double-Conversion (VFI), 3-level transformer-less, hot-swappable modules | ||||
| Phase | 3P–3P (3Ph+N+PE in / 3Ph+N+PE out) | ||||
| Form Factor | Modular cabinet with built-in battery module configuration, 600 × 1000 × 2000 mm | ||||
| Module Configuration | 3+1 (10 kVA) / 2+1 (15 kVA) | 3+1 (15 kVA) | 5 (10 kVA) / 2+1 (25 kVA) | 3+1 (20 kVA) / 2+1 (30 kVA) | 5 (15 kVA) / 3+1 (25 kVA) |
| Power Module Sizes | 10 / 15 / 20 / 25 / 30 kVA (2U, 440 × 620 × 86 mm); hot-swappable | ||||
| Output Power Factor | 1.0 (kW = kVA) | ||||
| Display | 7″ TFT touchscreen standard; 10″ optional by configuration | ||||
| Battery Support | Built-in VRLA battery modules, ±240 Vdc nominal, up to 6 internal battery groups by configuration | ||||
| Operating Modes | Online, ECO, HECO, Bypass, Battery, Maintenance | ||||
| Parallel | Up to 6 units for N+X redundancy or capacity expansion; shared-battery parallel supported | ||||
| Load Bus Synchronization (LBS) | Supported for dual-bus / synchronized multi-system designs by configuration | ||||
| Generator Compatible | Yes – Power Walk-In limits start-current impact on generator capacity | ||||
| Standards | IEC/EN 62040-1, IEC/EN 62477-1 safety; IEC/EN 62040-2 + IEC 61000 series EMC; IEC 62040-3:2021 performance; CE by series | ||||
