TM33-ET 200 kVA

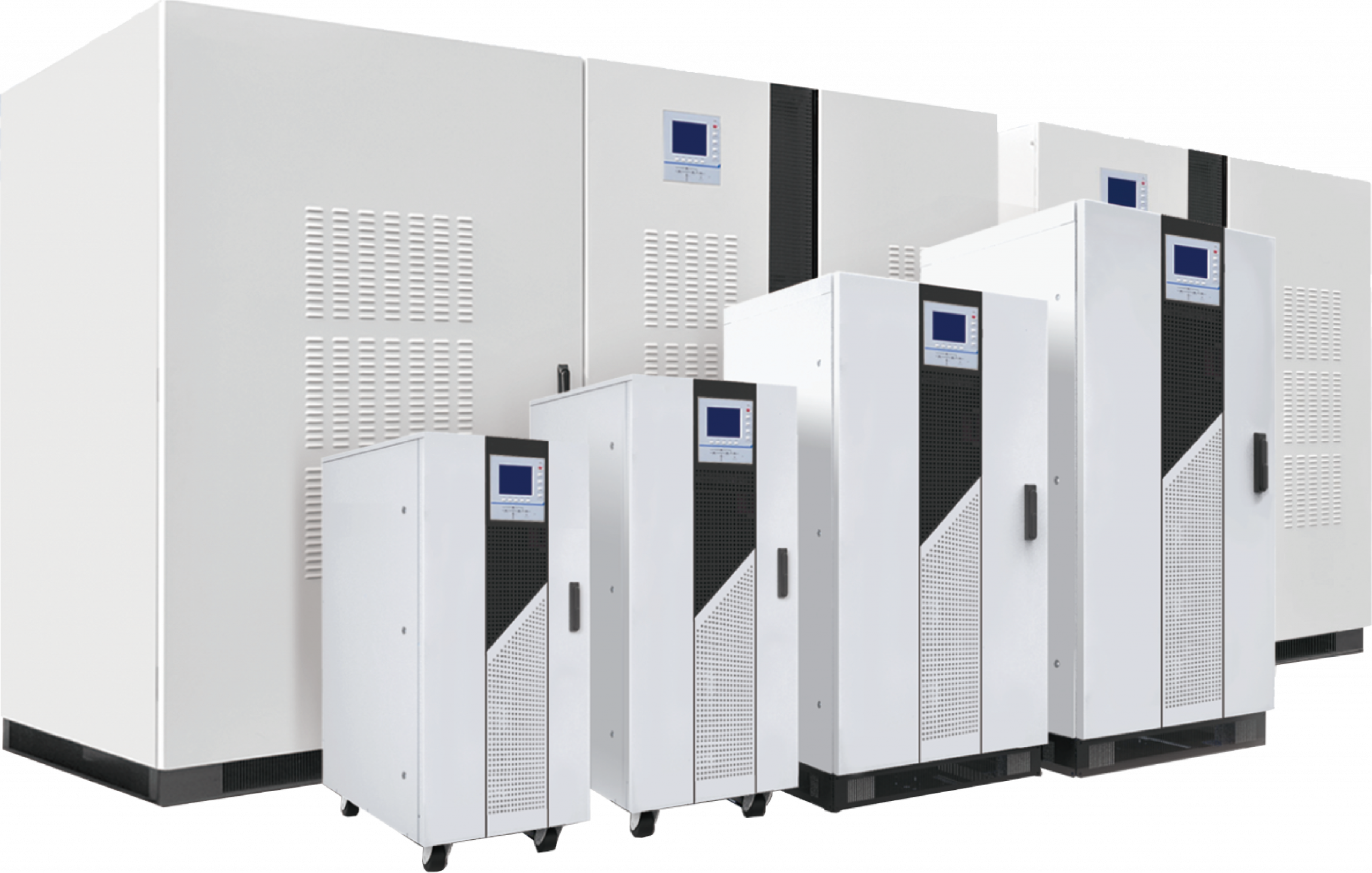

TM33-ET Transformer-Based Three-Phase Tower UPS 200/180 kVA/kW
Description
| Specification | 200 | 300 | 400 | 500 | 600 | 800 |
|---|---|---|---|---|---|---|
| Full Name | TM33-ET Transformer-Based Three-Phase Tower UPS | |||||
| Topology | Online Double-Conversion (VFI), Transformer-Based, Dual DSP | |||||
| Capacity (kVA/kW) | 200/180 | 300/270 | 400/360 | 500/450 | 600/540 | 800/720 |
| Output PF | 0.9 | |||||
| Parallel | N+X up to 6 units | |||||
| Load Bus Synchronization (LBS) | Supported for dual-bus / synchronized multi-system designs by configuration | |||||
| Generator Compatible | Yes – Power Walk-In by configuration | |||||
