RM31E 6 kVA

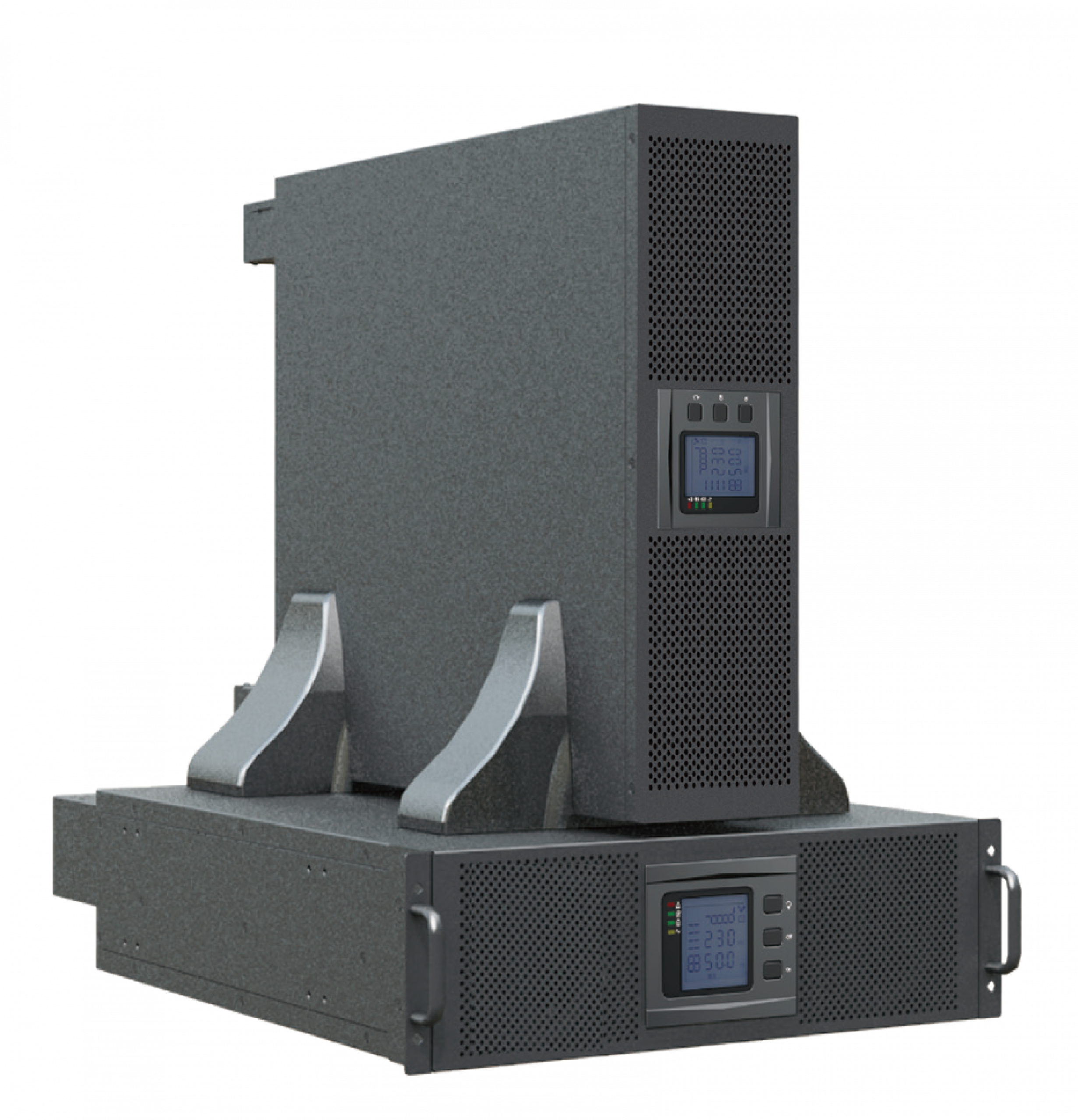

RM31E 3:1 Online Rack / Tower UPS 6 kVA / 6 kW
Description
| Specification | 6 kVA | 10 kVA |
|---|---|---|
| Full Name | RM31E 3:1 Online Rack / Tower UPS | |
| Topology | Online double-conversion VFI with DSP digital control | |
| Phase | 3:1 / 1:1 operation (3-phase in / 1-phase out; 1-phase in / 1-phase out supported by configuration) | |
| Form Factor | 3U rack / tower convertible | |
| Capacity | 6 kVA / 6 kW | 10 kVA / 10 kW |
| Output Power Factor | PF 1.0 standard | |
| Input Voltage | 380 / 400 / 415 Vac 3Ph+N+PE; 220 / 230 / 240 Vac 1Ph supported by configuration | |
| Display | Segment LCD; optional TFT colour display by configuration | |
| Operating Modes | Online, ECO, bypass, battery and 50 / 60 Hz frequency-converter modes; generator-fed and cold-start operation supported | |
| Parallel | Up to 4 units by configuration | |
| Standards | CE, IEC / EN 62040-1, IEC / EN 62477-1, IEC / EN 62040-2 (EMC), LVD (by series) | |
