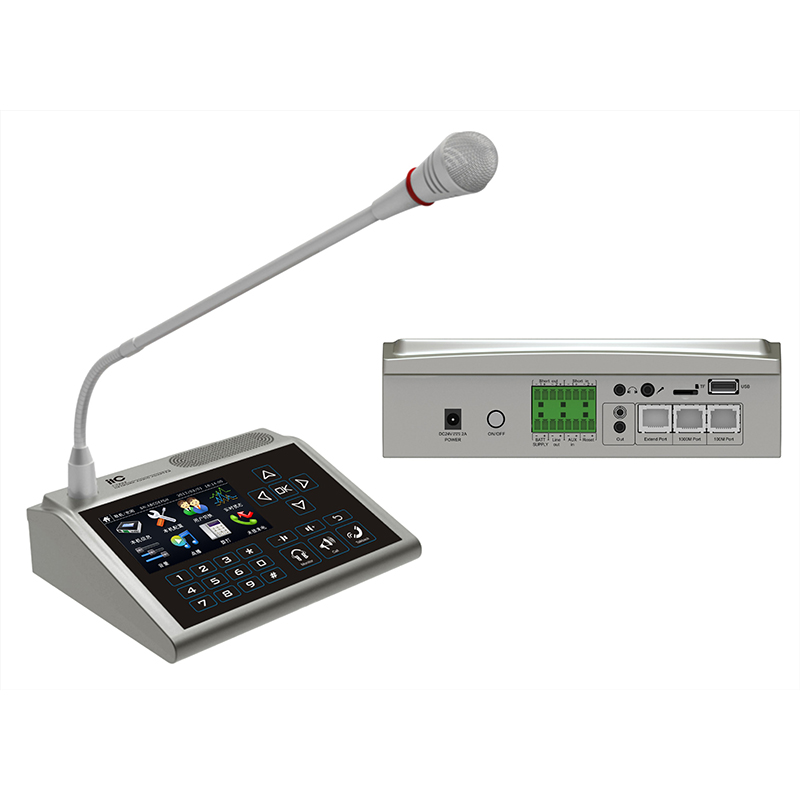

T-7802

Model

T-7802

Network interface

Standard RJ45 input

Transmission rate

1000Mbps/100Mbps

Communication protocol

TCP/IP, UDP, IGMP( multicast), IETF SIP

Audio format

Mp3, WMA, WAV

Audio mode

16-bit CD sound quality

Sampling rate

8K~48KHz

AUX input

1 group

AUX sensitivity

350mV

MIC input

1 group(microphone pole or rear headphone 3.5mm interface input is optional)

MIC sensitivity

10mV

Line out output

1 group

Line output level/impedance

1000mV/470Ω

Microphone type

Cardioid directional electret

Headphone output interface

3.5mm interface

Headphone load

32Ω

USB

Support up to 4T USB device; load <0.1A

SD

Support up to 128G/SDXC card

Total power consumption

20W

Standby power consumption

<3W

Frequency response

80Hz~16KHz  -3dB/+1dB

THD

≤1%

SNR

>65dB

Short circuit input

0V/3.3V, support dry contact input

Short circuit output

Maximum 1A/30VDC dry contact output

Working voltage

~190-240V 50-60Hz(power adapter); DC24V/1.5A

Extended interface

1×RJ45 special device interface

Working temperature

5℃~40℃

Working humidity

20%~80% relative humidity, no condensation

Size

200×159×55mm (L×D×H)

Weight

1.05Kg
