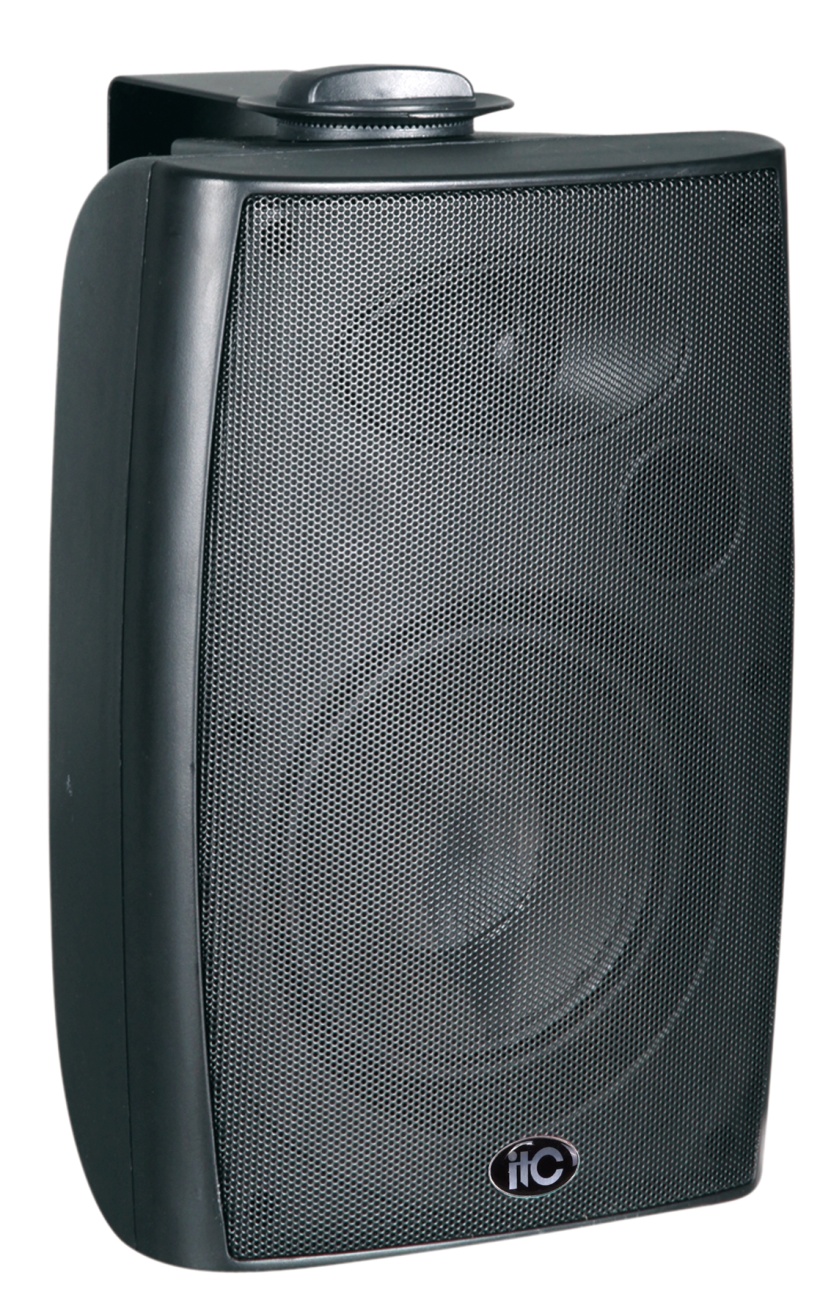

VA-774HW
Specification:
|
Model |
VA-774H/VA-774HW |
VA-775H/VA-775HW |
VA-776H/VA-776HW |
|
Power Taps @100V |
2.5W, 5W, 10W, 20W |
3.75W, 7.5W, 15W, 30W |
5W, 10W, 20W, 40W |
|
Power Taps @70V |
1.25W, 2.5W, 5W, 10W, 20W |
1.9W, 3.75W, 7.5W, 15W, 30W |
2.5W, 5W, 10W, 20W, 40W |
|
Max output |
40W |
60W |
80W |
|
Transformer Impedance |
4KΩ/2KΩ/1KΩ/500Ω/250Ω |
2.6KΩ/1.3KΩ/670Ω/330Ω/165Ω |
2KΩ/1KΩ/500Ω/250Ω/125Ω |
|
Input |
70V/100V/8Ω |
70V/100V/8Ω |
70V/100V/8Ω |
|
SPL(1W/1M) |
86dB |
88dB |
89dB |
|
Max. SPL (Rated W/1M) |
99dB |
103dB |
105dB |
|
Frequency Response (-10dB) |
120-18KHz |
100-18KHz |
100-20KHz |
|
Finish |
Baffle: ABS, Black/White |
Baffle: ABS, Black/White |
Baffle: ABS, Black/White |
|
|
Grille: Steel, Black/White |
Grille: Steel, Black/White |
Grille: Steel, Black/White |
|
Speaker Driver |
4" x 1 1.5" x 1 |
5" x 1 1.5"x 1 |
6" x 1 1.5" x 1 |
|
Dimension |
276 x 170 x 170mm |
285 x 180 x 186mm |
340 x 220 x 225mm |
|
Weight |
2.3kg |
2.7kg |
4.1kg |
|
Mounting |
With mounting bracket fixed by screw |
With mounting bracket fixed by screw |
With mounting bracket fixed by screw
|
