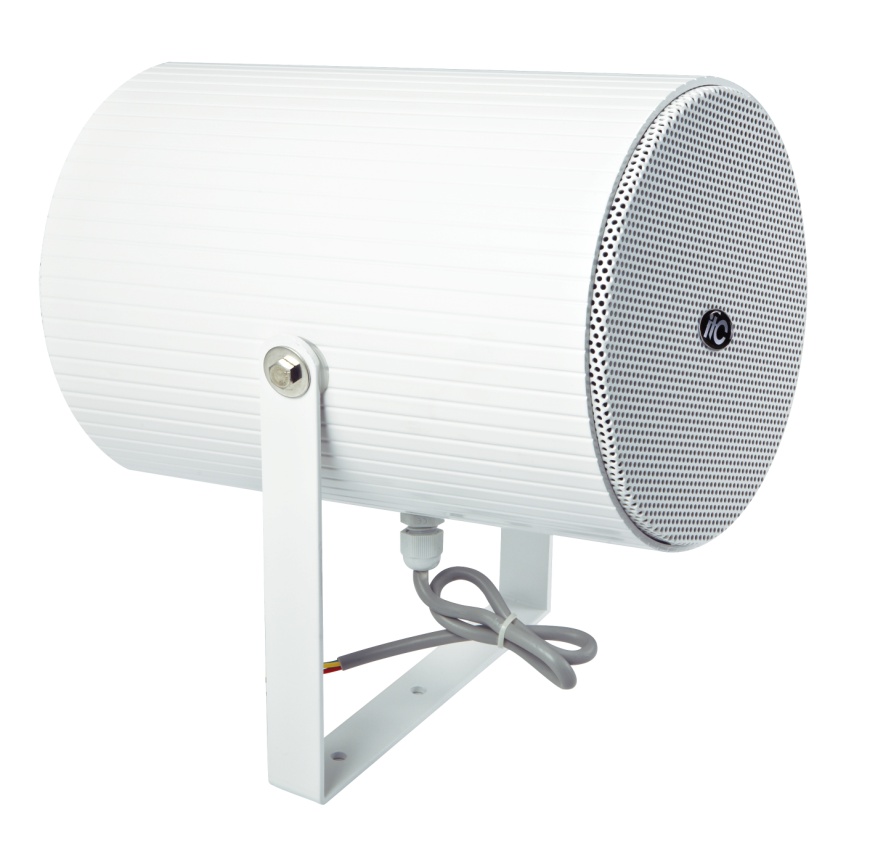

VA-770T
Dual-directional Projection Loudspeaker
Description
Specification：
|
Model |
VA-770T |
|
Power Taps @100V |
5W, 10W, 20W |
|
Power Taps @70V |
2.5W, 5W, 10W |
|
Impedance |
Blue: Com Green: 2 KΩ Yellow: 1KΩ Red: 500Ω |
|
SPL(1W/1M) |
92dB |
|
Max. SPL (Rated W/1M) |
105dB |
|
Frequency Response (-10dB) |
110-15KHz |
|
Finish |
Baffle: Aluminum, White Grille: Steel, White |
|
Speaker Driver |
6" x 2 |
|
IP Rate |
IP x 6 |
|
Dimensions |
172 x 252mm |
|
Weight |
3.3Kg |
|
Mounting |
With mounting bracket fixed by screw
|
