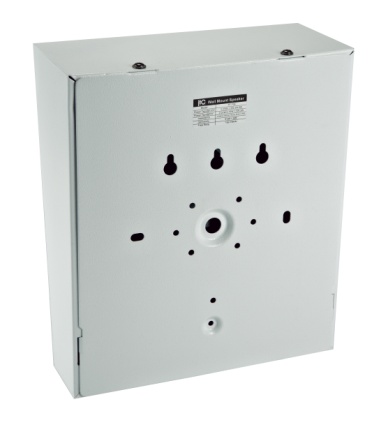

VA-515
Fireproof Wall Mount Speaker
Description
Descriptions:
5" fireproof version wall mount speaker
Ceramic connector, thermal use and fire-resistant cable
4 power taps at 100V output
All metal material design with fire proof box
Fast installation by screw hook
Excellent response for background music and voice message
EN54-24 certification is under taken
|
Model |
VA-515 |
|
Power Taps @100V |
0.75W, 1.5W, 3W, 6W |
|
Power Taps @70V |
0.37W, 0.75W, 1.5W, 3W |
|
Impedance |
Com/13.3KΩ/6.7KΩ/3.3KΩ/1.7KΩ |
|
SPL(1W/1M) |
91dB ±3 dB |
|
Max. SPL (Rated W/1M) |
99dB |
|
Frequency Response (-10dB) |
100-16KHz |
|
Finish |
Baffle: Steel, White Grille: Steel, White |
|
Speaker Driver |
5" x 1 |
|
Cutout Size |
/ |
|
Dimensions |
245 x 212 x 95mm |
|
Weight |
1.9Kg |
|
Mounting |
Hook
|
