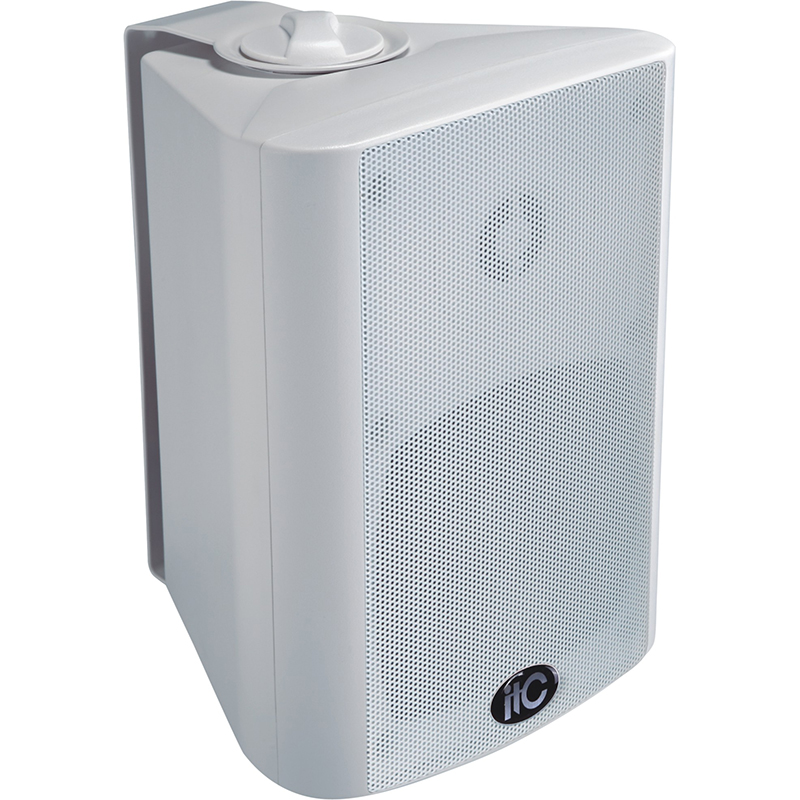

T-774W
Specification:
|
Model |
T-774H/T-774HW |
T-775H/T-775HW |
T-776H/T-776HW |
T-778H/T-778HW |
|
Power taps @100V |
2.5W, 5W, 10W, 20W |
3.75W, 7.5W, 15W, 30W |
5W, 10W, 20W, 40W |
7.5W, 15W, 30W, 60W |
|
Power taps @70V |
1.25W, 2.5W, 5W, 10W, 20W |
1.9W, 3.75W, 7.5W, 15W, 30W |
2.5W, 5W, 10W, 20W, 40W |
3.75W, 7.5W, 15W, 30W, 60W |
|
Max power |
40W |
60W |
/ |
120w |
|
Input |
70V/100V/8Ω |
70V/100V/8Ω |
70V/100V/8Ω |
70V/100V/8Ω |
|
SPL(1W/1M) |
86dB |
88dB |
89dB |
89dB |
|
Impedance |
4KΩ/2KΩ/1KΩ/500Ω/250Ω |
2.6KΩ/1.3KΩ/670Ω/330Ω/165Ω |
2KΩ/1KΩ/500Ω/250Ω/125Ω |
1.3KΩ/670Ω/330Ω/165Ω/81Ω |
|
Frequency response (-10dB) |
120-18KHz |
100-18KHz |
100-20KHz |
100-20KHz |
|
Speaker driver |
4" x 1 1.5" x 1 |
5" x 1 1.5"x 1 |
6" x 1 1.5" x 1 |
8" x 1 2" x 1 |
|
IP rate |
IP66 |
IP66 |
IP66 |
IP66 |
|
Dimensions |
260 x 170 x 170mm |
285 x 180 x 186mm |
340 x 220 x 225mm |
450 x 295 x 290mm |
|
Weight |
2.3kg |
2.7kg |
4.1kg |
6.5kg
|
