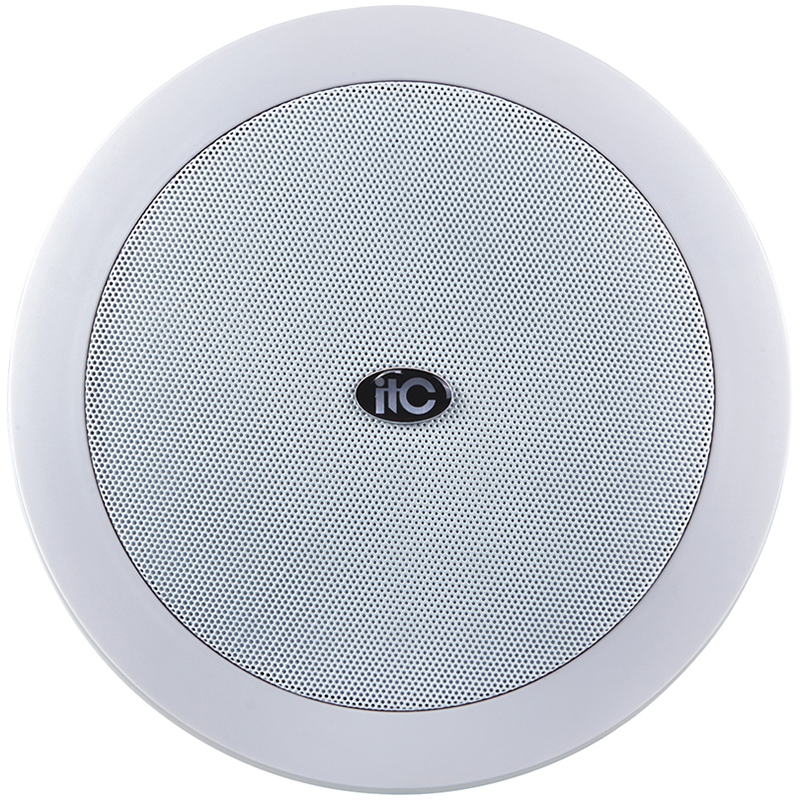

T-208A
Specification:
|
Model |
T-205A |
T-206A |
T-208A |
|
Power taps @100V |
1.25W, 2.5W, 5W, 10W |
2.5W, 5W, 10W, 20W |
3.75W, 7.5W, 15W, 30W |
|
Power taps @70V |
0.65W, 1.25W, 2.5W, 5W |
1.25W, 2.5W, 5W, 10W |
1.87W, 3.75W, 7.5W, 15W |
|
Impedance |
Black: Com Blue: 8KΩ Red: 4KΩ |
Black: Com Blue: 4KΩ Red: 2KΩ |
Black: Com Blue: 2.6KΩ Red: 1.3KΩ |
|
Green: 2KΩ White: 1KΩ |
Green: 1KΩ White: 500Ω |
Green: 670Ω White: 330Ω |
|
|
SPL(1W/1M) |
89dB |
92dB |
94dB |
|
Max. SPL (Rated W/1M) |
99dB |
105dB |
109dB |
|
Frequency response (-10dB) |
80-20KHz |
70-20KHz |
60-20KHz |
|
Finish |
Baffle: ABS, White Grille: Steel, White |
Baffle: ABS, White Grille: Steel, White |
Baffle: ABS, White Grille: Steel, White |
|
Speaker driver |
5" x 1 1.5" x 1 |
6" x 1 1.5" x 1 |
8" x 1 1.5" x 1 |
|
Cutout size |
180mm |
208mm |
245mm |
|
Dimensions |
215 x 75mm |
240 x 78mm |
280 x 80mm |
|
Weight |
0.8Kg |
1.2Kg |
1.6Kg |
|
Mounting |
Flush-mount dog ears |
Flush-mount dog ears |
Flush-mount dog ears
|
