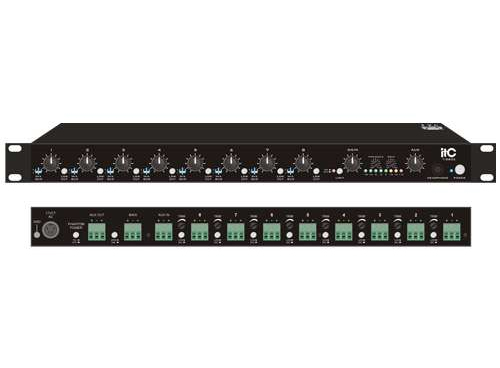

T-8S02
Mixer Pre- Amplifier (8 Inputs & 2 Outputs)
Description
Specifications:
|
Model |
T-8S02 |
|
Input Sensitivity/Impedance |
|
|
1-8MIC/ Line |
±0.25mV/5KΩ balanced, ±7.75V/5KΩ balanced |
|
AUX1 RCA In |
±0.775V/20KΩ unbalanced |
|
Output Level/Impedance |
|
|
Master 1, -2 |
+4 dBμ/440Ω balance (MAX:±7.75V) |
|
Main Output MIC Pad |
-50 dB |
|
Low Cut |
18 dB/octave at 100 Hz |
|
Frequency Response |
|
|
Less Than |
-1dB (20Hz~20KHz) |
|
S/N Ratio |
|
|
MIC |
> 60dB |
|
Line |
> 75dB |
|
THD |
|
|
MIC |
< 0.05% |
|
Line |
> 0.03% |
|
Cross-talk |
|
|
MIC |
> 60dB |
|
Line |
> 75dB |
|
LIMITER/COMPRESSOR |
|
|
Threshold Adj. Range |
-20 dB ~ +20 dB |
|
Ratio Adj. Range |
0 ~ 100% |
|
LED Bar Graph |
-18, -12, -6, -3, 0, +3, +6, +12VU (0 VU = +4 dB) Average or Peak reading |
|
Power Consumption Power |
20W |
|
Power Supply |
~110V-230V 50/60Hz |
|
Dimensions |
482 x 159 x 44mm |
|
Weight |
3.9K
|
