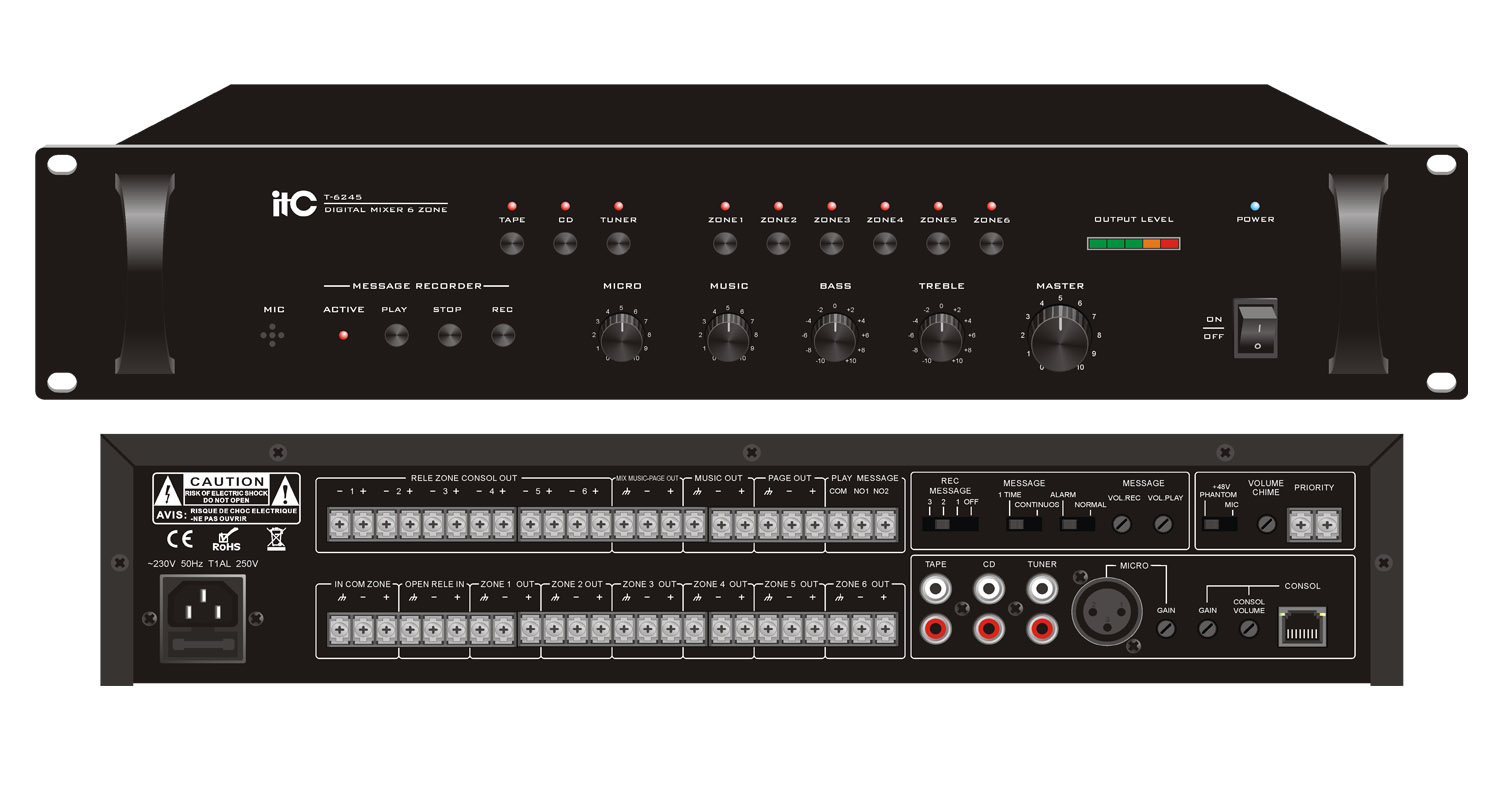

T-6245
6 Zone Mixer with Voice Recorder
Description
Specifications：
|
Model |
T-6245 |
|
CONSOLE INPUT |
|
|
Sensitivity |
5 mV/600Ω, 500mV/10KΩ |
|
S/N Ratio |
>68dB |
|
Frequency Response |
50Hz~17KHz (+1, -3dB) |
|
MIRCOPHONE INPUT |
|
|
Sensitivity |
5 mV/600Ω, 500mV/10KΩ |
|
S/N Ratio |
>68dB |
|
Frequency Response |
50Hz~17KHz (-3dB) |
|
Phantom Power |
+48V |
|
3 AUXILIARY INPUTS |
|
|
Tuner and Tape Input Sensitivity/Impedance |
200mV/47Ω |
|
CD Input Sensitivity/Impedance |
500mV/47Ω |
|
S/N Ratio |
>90dB |
|
Frequency Response |
20Hz~20KHz (+1, -3dB) |
|
CONTROL |
|
|
Bass |
±12dB at 100Hz |
|
Treble |
±12dB at 10KHz |
|
Chime |
2 tone active for contact free in priority and BGM |
|
Normal Distortion |
>0.05% |
|
OPERATING CONDITION |
|
|
Power Supply |
~110V-230V 50/60Hz & DC 24V |
|
Dimensions |
484 x 303 x 88mm |
|
Weight |
6.32Kg |
|
Max number of paging console |
6
|
