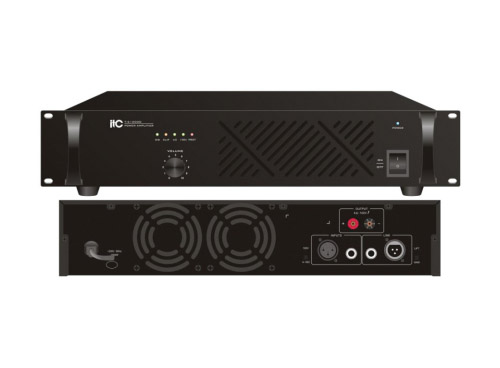

T-61000H
Digital Power Amplifier
Description
Specification：
|
Model |
T-61000H |
T-61500D |
T-62000D |
|
Rated Power Output |
1000W |
1500W |
2000W |
|
Speaker Outputs |
70V, 100V & 4~16Ω, speaker ON or binding |
||
|
Input interface |
2XLR (input A\B), /link out (A, B) |
||
|
Input Sensitivity & Impedance |
775mV/10KΩ, Unbalanced XLR/TRS Input |
||
|
Output Sensitivity & Impedance |
775mV/470Ω, Unbalanced XLR/TRS output |
||
|
Frequency Response |
80Hz~16KHz (+1dB, -3dB ) |
||
|
S/N Ratio |
>90dB |
||
|
THD |
Less than 0.5% at 1KHz, 1/3 rated power |
||
|
Cooling |
Fan automatically start up when temp reaches 45℃ |
||
|
Protection |
Over heat, over load, short circuit |
||
|
Power Supply |
220V/50Hz |
||
|
Power Consumption |
1300W |
1800W |
2500W |
|
Net Weight |
8.6Kg |
8.7Kg |
9.5Kg |
|
Dimension |
484x420x88mm
|
||
