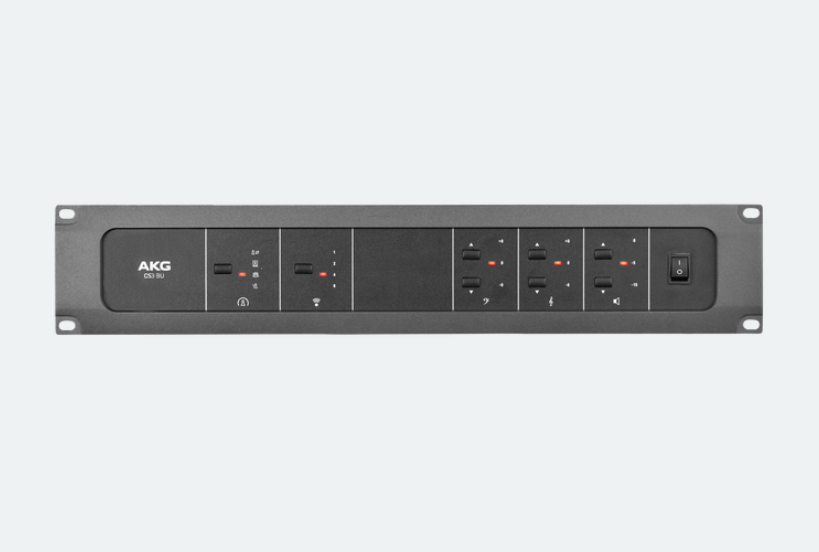

CS3 BU

Conference base unit
Description



The CS3 BU is the base unit for the CS3 conference system and provides all the necessary inputs and outputs to manage a conference for up to 60 microphone stations. It is the interface to all audio devices in a meeting room and offers a RS232 interface to connect an optional camera control system.



  • All in one conference controller
  • Four selectable operating modes
  • Connects to all relevant devices
Couleur: Black



Caractéristiques Générales

Power Supply
SMPS 100-240V (50Hz / 60 Hz) 3A
Static Consumption
13W
Nominal Power Consumption
320W
Output Power
≤90W / 24V each way
Mode
Balanced / Unbalanced
Frequency Response
50Hz-20kHz
S/N
>80dB
Harmonic Distortion
<0.5%
Harmonic Distortion at Overload
<1%
Crosstalk Attenuation (1kHz)
>50dB
Operating Temperature
0°C - 40°C at 95% relative humidity (non-condensing)

Dimensions

Length
482 mm
Width
281 mm
Height
88.4 mm
Weight
5.2kg
