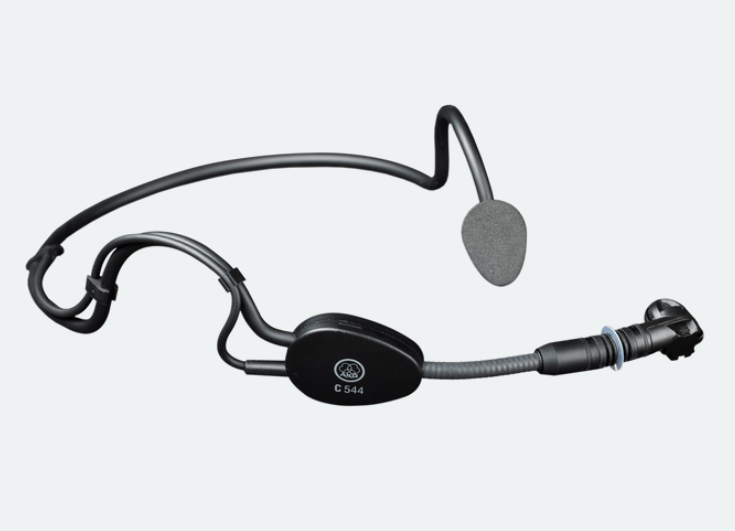

C544 L
High-performance sports head-worn condenser microphone
Description
- Fully rugged sports headband
- Cardioid polar pattern
- Flexible shock mount
Couleur: Black
Caractéristiques Générales
- Type
- Pre-polarized condenser microphone
- Polar Pattern
- Cardioid
- Frequency Range
- 80 - 20000 Hz
- Sensitivity
- 25 mV/Pa (U=9V, R=10kOhm)
- Impedance @ 1kHz
- <200 Ohms
- Recommended load impedance
- >2000 Ohms
- Max SPL for 1% THD
- 120dB
- Equivalent noise level (IEC 60268-4)
- 30dBA
- Signal to Noise Ratio (@94dB SPL)
- 63dBA
- Recommended Serial Resistor
- 10kOhm (2kOhm - 10kOhm)
Dimensions
- Dimensions
- 145 x 110 x 70 mm / 5.7 x 4.3 x 2.8 in.
- Net Weight
- 30g (1.1 oz.)
- Shipping Weight
- 200g (7.1 oz.)
Design
- Finish
- matte black
Audio Output
- Type
- Mini XLR
- Gender
- Female
- Contacts
- 3-pin
- Cable Length
- 1.5m (5 ft.)
Powering Interface
- Current Consumption
- <2mA (<500uA if U-9V, R=10kOhm)
- Operating Voltage
- 9V (2V - 10V)
Application
- Sports / Fitness
- Assisted Listening
- Sound Reinforcement
- Presentation
- Retail
Device
- Headset Microphone
