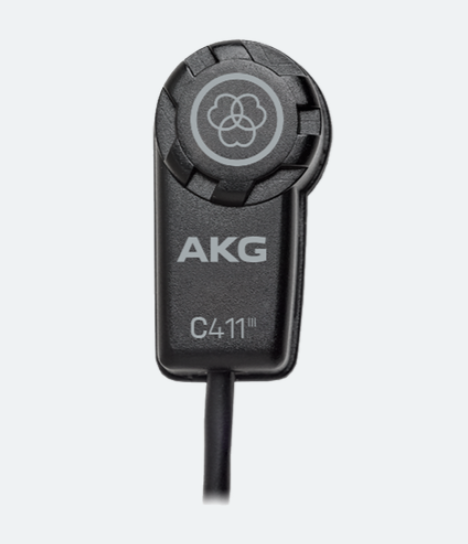

C411 PP
High-performance miniature condenser vibration pickup
Description
- Condenser transducer in sealed enclosure
- Ultralight vibration pickup
Couleur: Black
Caractéristiques Générales
- Type
- Pre-polarized condenser transducer
- Polar Pattern
- Figure of eight
- Audio frequency bandwidth
- 10 - 18000 Hz
- Sensitivity
- 2 mV/Pa
- Electrical impedance
- 200 Ohms
- Recommended load impedance
- 1000 Ohms
- Max. SPL for 1%/3% THD
- 96 dB / 103 dB
- Current consumption
- approx. 2.2 mA
Dimensions
- Length
- 9.7 mm
- Width
- 14.2 mm
- Height
- 26.7 mm
- Net Weight
- 225 g (8 oz.)
- Cable length
- 3 m (10 ft.)
Design
- Body
- plastic
- Finish
- matte black
Audio Output
- Type
- MPAV standard XLR connector
- Gender
- Female
- Contacts
- 3-pin
Powering Interface
- Voltage
- 9 to 52 V
- Current
- 2 mA
Application
- Live Instrument
Instrument
- Piano / Strings
