THD72WC

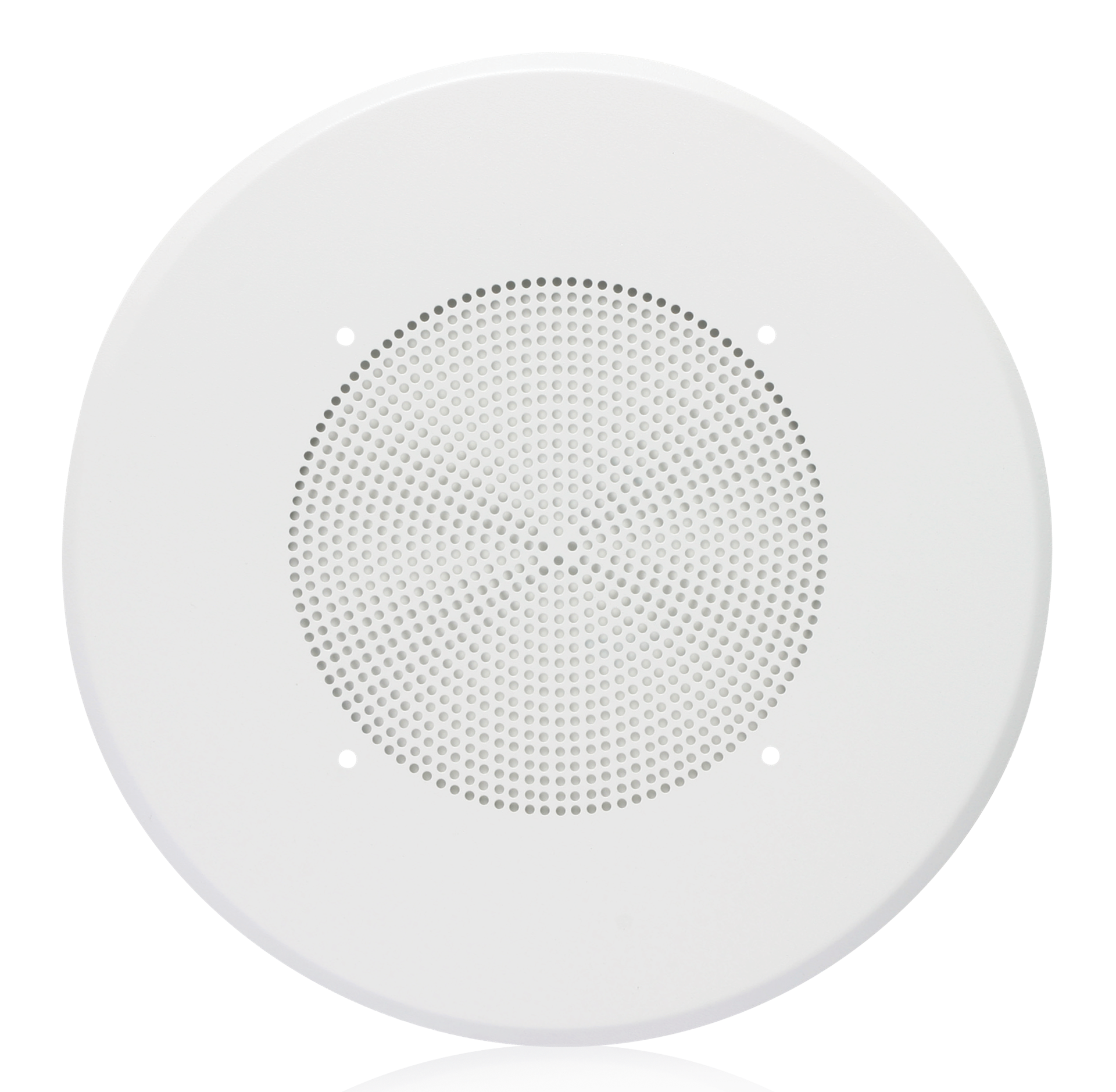

8" In-Ceiling Speaker with 4-Watt 25V/70V Transformer and T62-8 Torsion Baffle
Description
DESCRIPTION
THD72WC are cost-effective 8" dual-cone speaker assemblies which deliver wide frequency response for general purpose voice and music reproduction. Units are shipped complete with grille and 25/70.7-volt transformer factory wired to reduce field installation time and expense. HD Series models have a power rating of 25 watts and are mounted to a T62-8 torsion mount baffle. It will accept optional protective enclosures and mounting accessories to meet installation and code requirements
Features
- Equipped with an LT-72 Factory-Installed Line-Matching Transformer
- EZ Versions Available with Pre-Mounted Brackets and Rails for Quick Assembly in Standard 2 x 4 Suspended Tile Ceilings
- Decrease Installation Time and Expense with Pre-Assembled Loudspeaker, Transformer, & Baffle Combinations
SPECIFICATIONS
| Speaker Type | Treated Paper |
| Sensitivity | 97dB Peak, 94dB Average |
| Frequency Response | 100Hz - 10kHz |
| Power Taps | .5, 1, 2, & 4 Watts |
| Dispersion | 105° |
| Depth | 2 7/8" (7.3025 cm) |
| Diameter | 8" (20.32 cm) |
| Shipping Weight | 4.50 lbs (2.04 kgs) |
| Warranty Period | 60 months from date of purchase |
