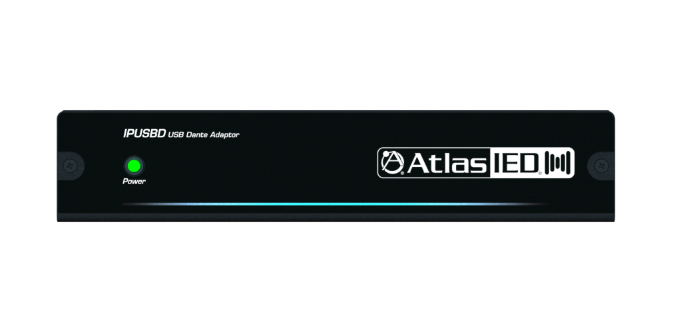

IPUSBD-8
8-Channel USB Dante Network Audio Device
Description
DESCRIPTION
The IPUSBD-8 Dante™ network audio device providing 8x8 input/output channels of digital audio to/from a USB port of a host computer to Ethernet. The Ethernet connection is auto-negotiated 100/1000MB via redundant RJ-45 ports. The USB port is compatible with USB 1.0 and 2.0 standards, and will work in USB 3.0 ports. USB 2.0 or higher port is required for more than 8x8 channels simultaneously, due to bandwidth limitations of USB 1.0.
Please note: This product is only compatible with the AtlasIED GLOBALCOM and 5400 Series systems
Features
- Supports Audinate’s Dante™ Digital Audio
- Provides Redundant Ethernet Ports
- LED Indicator for Power
- Can Be Powered from 12V or 24V DC Supply
SPECIFICATIONS
| Voltage | 12V or 24VDC |
| Power Consumption | 3W MAX |
| Height | 1.75" (44mm) |
| Width | 8.5" (216mm) |
| Depth | 5" (127mm) |
| Warranty Period | 36 months from date of purchase |
