IP116-D

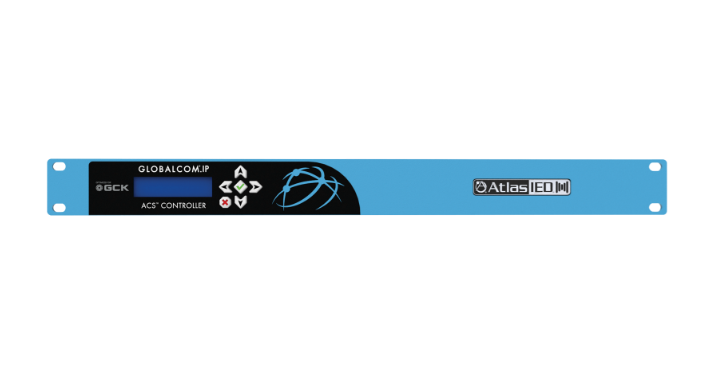

The AtlasIED IP116-D is a 1U rack-mount GLOBALCOM® hardware controller that serves as the core of an enterprise-wide Audio over IP (AoIP) communication system. It connects to microphone stations, VoIP telephones, amplifiers, loudspeakers, and third-party life-safety or building systems, managing live, delayed, and scheduled announcements while routing audio, control, and status signals across the network.
Preloaded with GCK software, including the GCK App for configuration, the IP116-D manages announcement sources, system endpoints, and control functions without requiring additional setup. Built on a robust hardware platform, it integrates Dante™ AoIP transport, logic I/O, relay control, and multiple audio interfaces to deliver reliable, synchronized operation across single-facility or multi-building environments.
The IP116-D supports Dante™ endpoints as well as additional IP-based devices such as AtlasIED IPX endpoints through the preloaded GCK software. It does not support CobraNet™ endpoints.
- Runs AtlasIED GLOBALCOM® GCK software, with standalone configuration via the GCK App
- Handles live, delayed, and scheduled audio announcements across the system
- Supports warm failover operation in Lifeline Mode (requires two controllers)
- Integrated Dante™ AoIP with 16x16 audio channels for message distribution and integration with remote Dante systems
- Direct low-latency mic-to-amp routing for paging without using Dante channel capacity
- Gigabit Ethernet network interface
- Two balanced line inputs for external audio sources
- Eight logic inputs and eight relay outputs for system control and monitoring
- 1U rack-mount hardware design
- Airports
- Industrial
- Mass Transit
- Corporate
- Education
