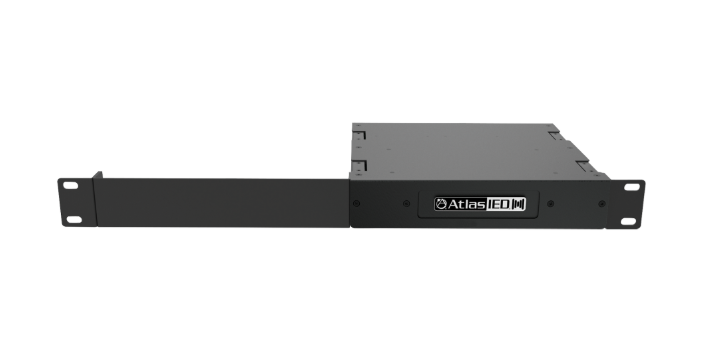

IP-ZCM1RMK
Single PoE+ IP Addressable IP-to-Analog Gateway with Integrated Amplifier and Rack Mount Kit
Description
Features
-
Network Features
- Dynamic or Static IP Address
- IEEE802.3 10/100Base-T Ethernet
- IEEE 802.1q Tagging
- IEEE 802.11AT Compliant
-
VoIP Standard Audio: G.711 u-law/a-law (64 kbit/s) or G.722 Wideband Audio (64 kbit/s)
-
Auto Registration: SLP for Singlewire Applications, DHCP Option 72 for Syn-Apps' Applications or IEDNet+ for AtlasIED Applications
- Static Configuration: HTTP GUI for Static Configuration or Cisco SRST
-
Audio Features
- Integrated Amplifier 25-Watt Total Power: Primary Speaker Output 8 ohm or 70.7 Volt
- Aux Audio Line-In Unbalanced (2.8Vpp 10K)
- Aux Audio Line-Out Unbalanced (2.8Vpp 10K)
- Additional Features
- 2 General Purpose Inputs
- 1 General Purpose Output (2A @ 30 VDC)
- Phone/Night Loud Ringer
- External Power Supply Option
-
Rack Mount Kit Included
Case Studies
SPECIFICATIONS
| Power Rating | 15 Watts RMS into an 8Ω Load |
| Inputs | RJ-45 Female on PCB |
| Outputs | 8Ω, 25V, or 70.7V |
| Power Source | IEEE 802.3af or IEEE 802.3at Compliant POE(+) Network Switches / Local 24VDC PSU |
| Network Control | Multicast Enabled Networks |
| Rack Units | 1RU |
| Height | 1.75" (45mm) |
| Width | 8.5" (215.9mm) IP-ZCM Only / 19" (482.6mm) with Rack Mount Kit |
| Depth | 8.85" (224.8mm) |
| Safety Listed | 62368-1, CSA C22.2 #62368-1, IEC 62368-1 CB Scheme and FCC |
| Warranty Period | 60 months from date of purchase |
