C5AT70
8" Dual Cone In-Ceiling Speaker with 5-Watt 70V Transformer and 5oz Magnet
Description
DESCRIPTION

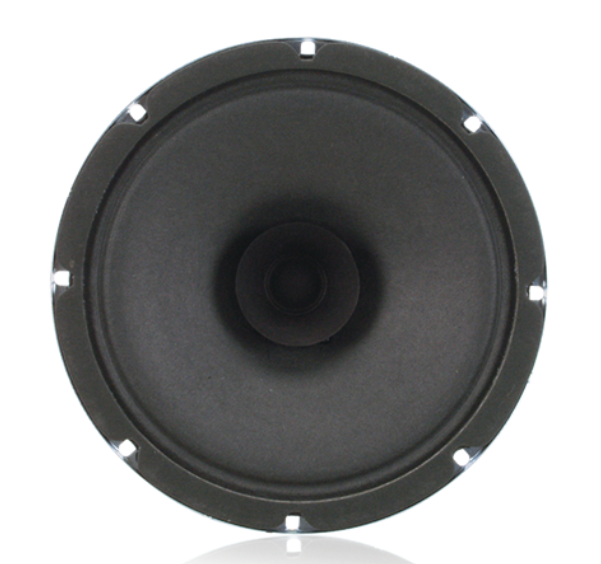

Model C5AT70 is a reliable, economically priced 15-watt speaker with a pre-mounted 70.7V 5W transformer that offers many features found in speakers costing considerably more.
It includes a curvelinear, treated-paper cone for lower harmonic distortion. It is also equipped with a full 1" diameter copper voice coil with a black-anodized aluminum former for better power dissipation.
Model C5A operates within a frequency response range of 50Hz - 18kHz with a sensitivity of 96dB and a dispersion angle of 105°.
It mounts a wide variety of AtlasIED round and square baffles and enclosures to meet functional and aesthetic application requirements.
Features
- Ideal for Multi-Purpose Commercial, Industrial and Institutional Use
- Industry Standard Value Loudspeaker with Proven Performance
- Mounts a Wide Selection of Atlas Sound Baffles
- With Factory-Installed LT-70 Line-Matching Transformer
SPECIFICATIONS
| Speaker Type | Treated Paper |
| Sensitivity | 96dB Peak, 93dB Average |
| Frequency Response | 100Hz - 10kHz |
| Power Taps | .5, 1, 2, & 5 Watts |
| Dispersion | 105° |
| Depth | 2 5/8" (6.6675 cm) |
| Diameter | 8" (20.32 cm) |
| Shipping Weight | 2.17 lbs (0.98 kgs) |
| Warranty Period | 60 months from date of purchase |
