BB-EB1616DT
BlueBridge® Expansion I/O Box with Dante™
Description
DESCRIPTION

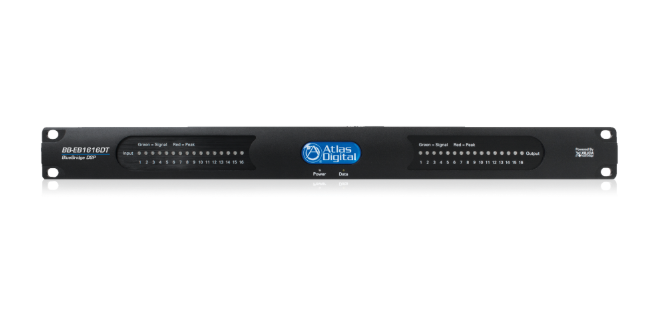

The BB-EB1616DT is a single rackspace device with LED indicators for each channel, network LEDs and power LEDs on the front panel. On the rear panel are dual RJ-45 connectors for Dante™, one RJ-45 network control connector, 16 balanced mic/line inputs and 16 balanced line level outputs all using Euro Block/Phoenix style connectors. The BB-EB1616DT can be incorporated into any BlueBridge® system as an I/O expander or it can be used as a standalone digital snake on networks featuring Dante™. Input configuration, mutes, analog and digital trim, phantom power and live level meters work with all BlueBridge software platforms.
Features
- 16 x 16 Dante™ Network I/O
- 16 x 16 Analog I/O
- Selectable Mic/Line Inputs
- Premium Grade THAT® Corp Microphone Preamps
- 48V Phantom Power
- 48kHz Sampling
- 40 Bit Floating DSP Engine
- High Performance 24 Bit Converters
- Ethernet Network Connectivity
SPECIFICATIONS
| Input impedance | >10kΩ |
| CMRR | >100dB (50Hz-10kHz) |
| Maximum Level | +20dBu |
| CMRR | >100dB (50Hz - 10kHz) |
| Mic Gain | 0/+40dB Steps |
| Frequency Response | 20Hz - 20kHz |
| Crosstalk | <-100dB |
| Distortion | .002% (1kHz @ +40dBu)) |
| Signal LEDs | 1 Dual Color Per Channel |
| Status LEDs | Power and Data |
| Analog I/O | Phoenix Plug-in 3.5MM |
| Ethernet Network I/O | RJ45 (CAT5) |
| Power | 90-240VAC (50-60Hz) |
| Width | 19" (483mm) |
| Warranty Period | 36 months from date of purchase |
