APT-34AT
Dual Direction Twin Horn Speaker with 30-Watt 25V/70V/100V Transformer
Description
DESCRIPTION

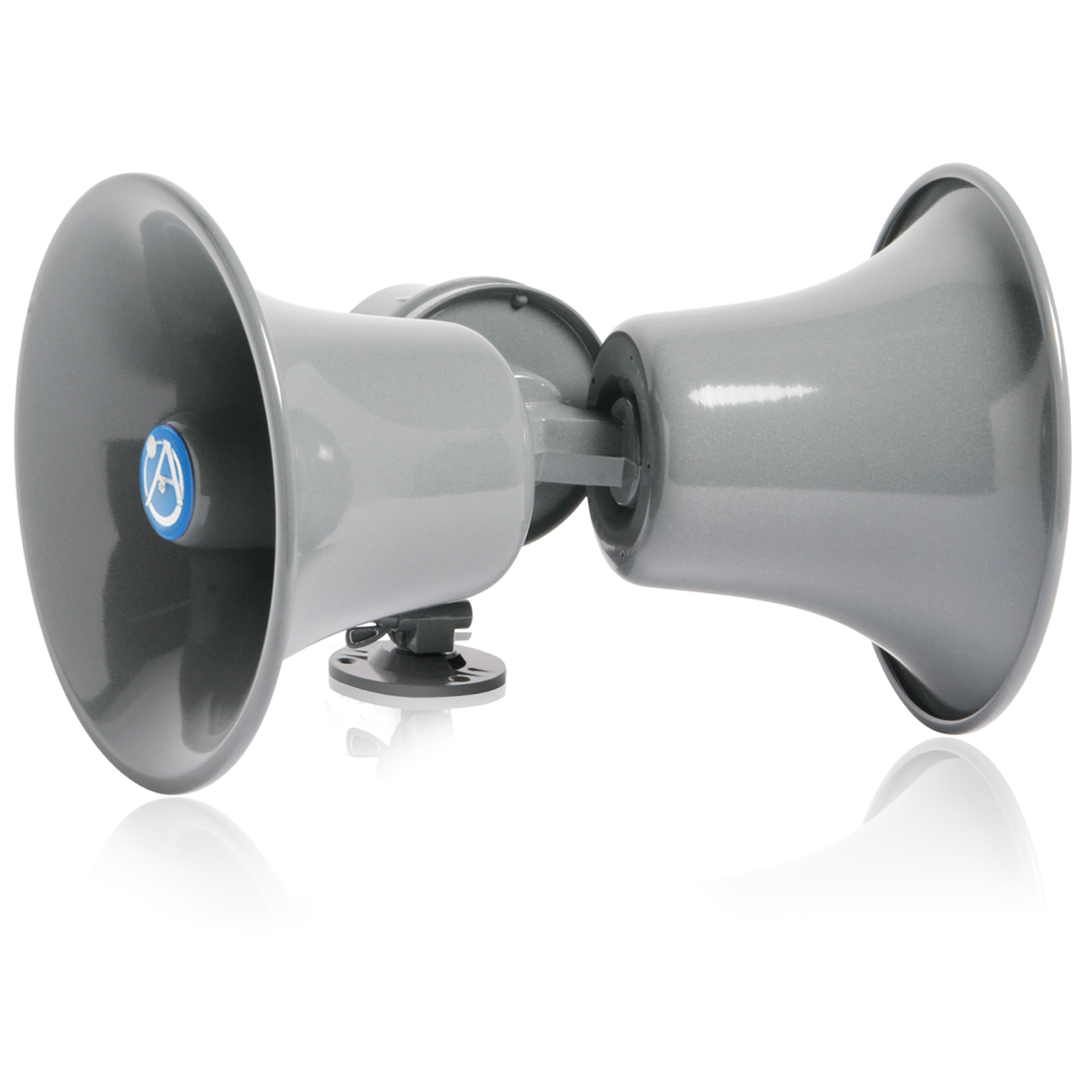

Model APT-34AT Surface-mounting speaker with bi-directional sound dispersion provides concentrated coverage in corridors, stairwells and walkways in commercial, institutional and industrial applications.
Twin horn assembly delivers 30 watts of power with a single compression driver (included) and provides 100° sound dispersion in each direction.
Unit includes the Omni-Purpose® bracket and provisions for surface/strap mounting. Finished in grey baked epoxy.
Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.
Features
- Includes 30 Watt High Efficiency Driver
- Omni-Purpose Mounting Bracket for Positioning Flexibility on Vertical or Horizontal Planes
- Twin Reflex Projectors Provide High Efficiency Bi-Directional Sound Dispersion
- Weather Resistant Construction for Indoor or Outdoor Installations
SPECIFICATIONS
| Frequency Response | 400Hz - 12.5kHz |
| Sensitivity | 101dB |
| Power Taps | 2, 3.8, 7.5, 15, 30W @ 70.7V |
| Dispersion | 175° |
| Depth | 16 1/2" (41.91 cm) |
| Diameter | 9 1/4" (23.50 cm) |
| Shipping Weight | 9.00 lbs (4.08 kgs) |
| Operating Temperature Range | -40C to 70C |
| Warranty Period | 60 months from date of purchase |
