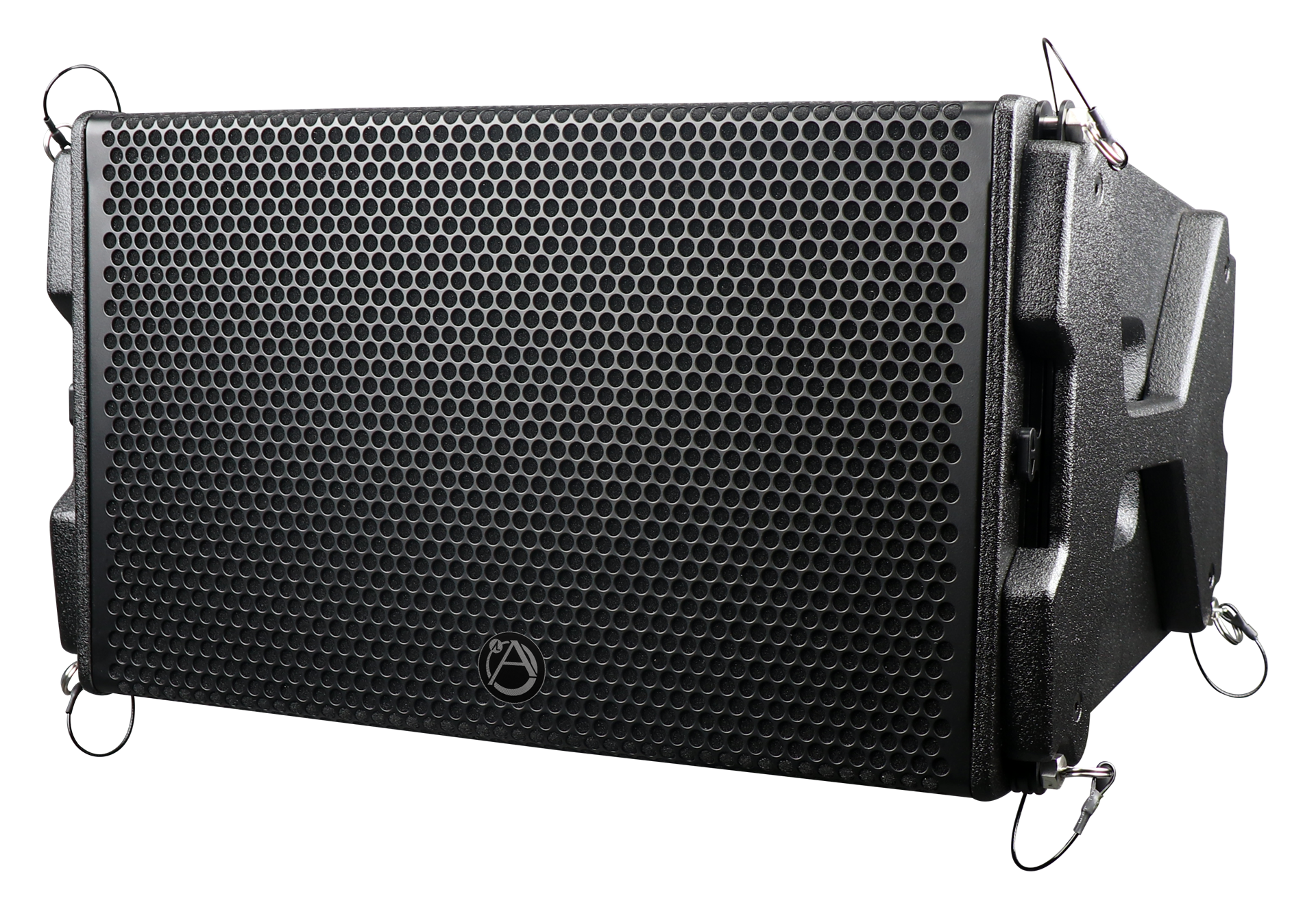

AL112-B

The AtlasIED AL112-B compact line array loudspeaker is designed for use in vertical columns. The 2-way passive design features12" driver in a dipole arrangement and a centrally mounted 1.4” compression driver with a wave transformer. Sophisticated horn geometry combined with the advanced bass-reflex port design delivers full bandwidth capabilities with an extended LF output. The mechanical and acoustical design enables vertical arrays of up to twenty-four loudspeakers with vertical splay angles from 0° to 14° with a 1° resolution. It can be used in columns of purely AL112-B loudspeakers or combined with AL215-B subwoofer. The loudspeaker cabinet is constructed from plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. Each side panel incorporates a handle while two additional recessed grips are provided at the rear. Four point rigging hardware is integrated into the loudspeaker enclosure.
