AF140
High-Quality 140 Watt Autotransformer
Description
DESCRIPTION

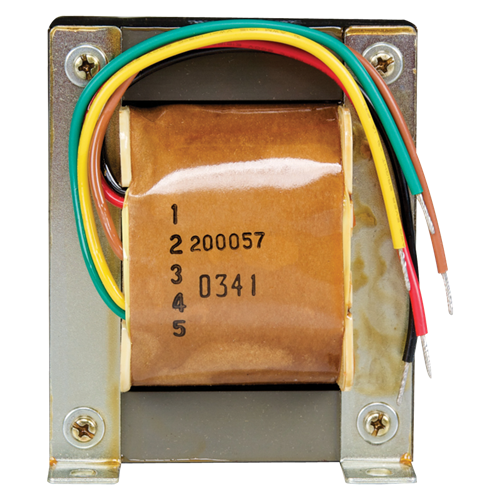

Model AF140 consists of a single coil autoformer with multiple taps for maximum flexibility in matching a wide variety of speaker loads to power amplifier outputs. A single AF140 will handle loads up to 150 watts and by connecting two units in series, power handling capacity can be increased to 300 watts.
Features
- Serves as a Method for Matching Loudspeaker Loads to Amplifier Outputs
- Suitable for Professional and Commercial Sound Applications
SPECIFICATIONS
| Frequency Response | 30Hz - 15kHz |
| Power Rating | 150W |
| Height | 4 1/8" (10.4775 cm) |
| Width | 3 7/16" (8.73252 cm) |
| Depth | 1 3/8" (3.4925 cm) |
| Shipping Weight | 7.00 lbs (3.18 kgs) |
| Warranty Period | 60 months from date of purchase |
