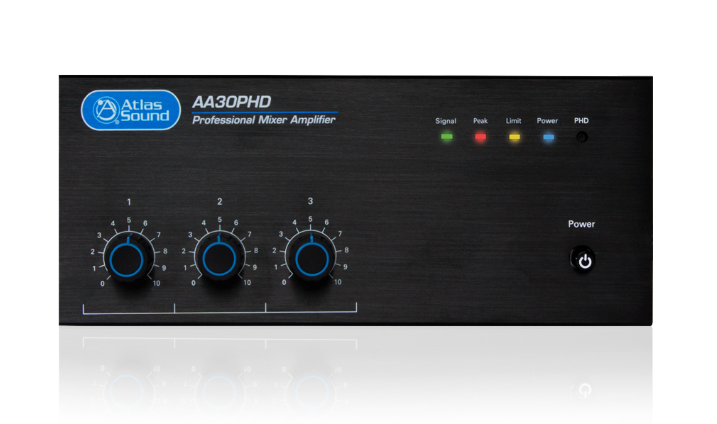

AA30PHD
3-Input, 30-Watt Mixer Amplifier with Automatic System Test (PHD)
Description
DESCRIPTION
Features
- 30W into 25V/70.7V and 4Ω Loads
- Rear Mounted DIP Switch Allows Mute Receive for Inputs 2 and 3
- Contact Closure Mute Terminals
- Variable Mute Sensitivity Control for Input 1
- Two Unbalanced, Summing Line Level Inputs
- Balanced Mic/Line/Tel Input w/ Phantom Power
- Automated Diagnostic System Test (Push Here Diagnostic)
SPECIFICATIONS
| Frequency Response | 50Hz - 15kHz |
| Power Output | Max. Average Power @ 50Hz-15kHz with .5% THD, 4Ω 30W RMS |
| Height | 3.66" (93mm) |
| Width | 8.27" (210mm) |
| Depth | 10.87" (276mm) |
| Weight | 9lb |
| Shipping Weight | 11lb |
| Voltage Compatibility | 110V - 120V |
| Warranty Period | 36 months from date of purchase |
