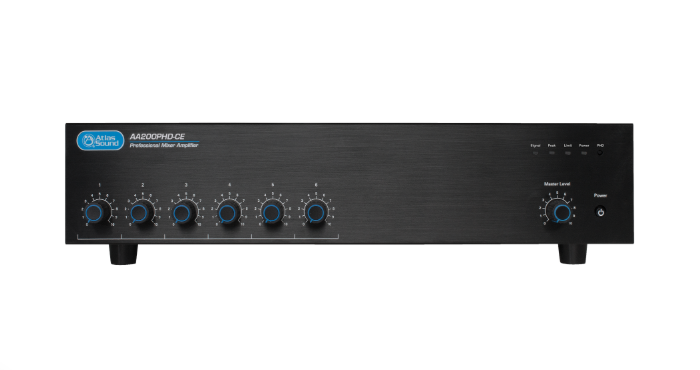

AA200PHD-CE
CE Listed 6-Input, 200-Watt Mixer Amplifier with Automatic System Test (PHD)
Description
DESCRIPTION
Features
- 200W into 50V/100V and 4Ω Loads
- Automated Diagnostic System Test (Push Here Diagnostic®)
- Four Balanced Mic/Line/Tel Inputs w/ Phantom Power
- Input Assignable Zone 2 Output
- Remote Level Control
- Remote Input Select (RIS)
- Line Output
- Preamp In for External Processors
- Variable Mute Sensitivity Control for Input 1
- Contact Closure Mute Terminals
SPECIFICATIONS
| Frequency Response | 50Hz - 15kHz |
| Connector Type | 4 Position Phoenix 3.5mm Pitch |
| Power Output | Max. Average Power @ 50Hz-15kHz with .5% THD, 4Ω 200W RMS |
| Height | 3.66" (93mm) |
| Width | 16.54" (420mm) |
| Depth | 14.6" (422mm) |
| Voltage Compatibility | 220V - 240V |
| Warranty Period | 36 months from date of purchase |
