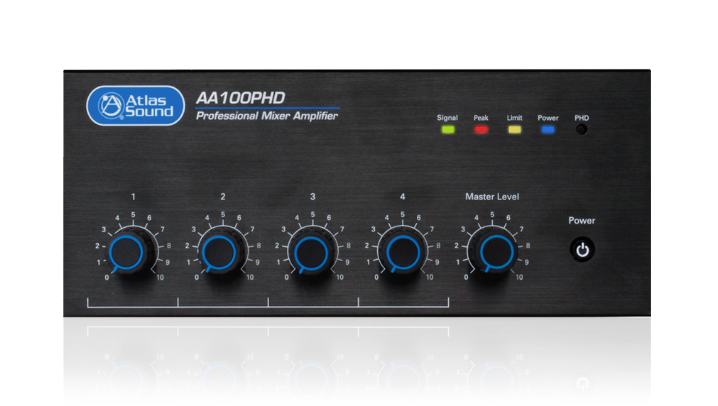

AA100PHD
4-Input, 100-Watt Mixer Amplifier with Automatic System Test (PHD)
Description
DESCRIPTION
Features
- Rear Mounted DIP Switch Allows Mute Receive for Inputs 2 and 3
- Contact Closure Mute Terminals
- Variable Mute Sensitivity Control for Input 1
- Preamp In for External Processors
- Line Output
- Remote Input Select (RIS)
- Remote Level Control
- Input Assignable Zone 2 Output
- Two Unbalanced, Summing Line Level Inputs
- Two Balanced Mic/Line/Tel Inputs w/ Phantom Power
- Automated Diagnostic System Test (Push Here Diagnostic®)
- 100W into 25V/70.7V and 4Ω Loads
-
Optional Rack Mount Kit Available, Model AARMK2-5
SPECIFICATIONS
| Frequency Response | 50Hz - 15kHz |
| Connector Type | 4 Position Phoenix 3.5mm Pitch |
| Power Output | Max. Average Power @ 50Hz-15kHz with .5% THD, 4Ω 100W RMS |
| Height | 3.66" (93mm) |
| Width | 8.27" (210mm) |
| Depth | 10.87" (276mm) |
| Weight | 13lb |
| Shipping Weight | 15.2lb |
| Voltage Compatibility | 110V - 120V |
| Warranty Period | 36 months from date of purchase |
