1100DAB

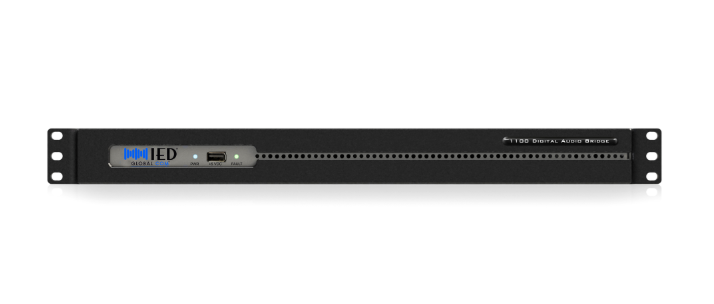

The 1100DAB Digital Audio Bridge Family provides ultra low latency, multi channel audio bridging for GLOBALCOM® controller systems. Each 1 RU chassis features dual redundant Gigabit Ethernet links, seamlessly configurable via GCK. Designed for adjacent audio zones, it ensures synchronous audio transport across CobraNet® and Dante® infrastructures eliminating echo and timing delays.
3 Models Available
IED1100DAB (CobraNet > CobraNet)
Supports 8×8 CobraNet channels to bridge multiple CobraNet GLOBALCOM controllers, delivering deterministic millisecond-level latency.
IED1100DAB CD (CobraNet < > Dante)
Supports 8×8 channels, linking a CobraNet GLOBALCOM controller to a Dante GLOBALCOM controller, maintaining tight sync and minimal latency.
IED1100DAB DD (Dante > Dante)
Supports 16×16 Dante channels, connecting two Dante GLOBALCOM controllers with ultra low microsecond-scale latency.
- Ultra Low Latency & Synchronization – Ensures tight audio alignment with millisecond (CobraNet) or microsecond (Dante) precision, avoiding audible echo in adjacent zones.
- Dual Redundant Ethernet – Provides network reliability and coexistence with standard data traffic, ensuring uninterrupted audio delivery.
- Seamless GLOBALCOM Integration – Fully compatible with CobraNet and Dante GLOBALCOM controllers, easily configured and managed through GCK.
- Legacy-to-Dante Migration – The CD model enables smooth protocol transition from CobraNet to Dante without sacrificing timing accuracy.
- High-Channel Dante Systems – The DD model supports large Dante-based installations requiring expanded audio capacity and microsecond scale latency.
- Airports
- Mass Transit
- Large Campus
| Power Supply Voltage | 12VDC |
| Rated Input Current | IED1100DAB - 400mA (4.8 W) IED1100DAB-CD - 583mA (7.0 W) IED1100DAB-DD - 767mA (9.2 W) |
| Power Connector | 1x Removable Locking Euroblock 2 Pin 3.81mm Pitch |
| Ethernet Connector | 4x RJ-45 Jacks 2 Pair Redundant Digital Audio Speed: 100Mbps |
| Rack Mount Requirements | 1RU, 19" |
| Unit Dimensions (without Rack Ears) (HxWxD) | 1.75“ x 17“ x 12.25“ (45mm x 432mm x 311mm) |
| Unit Dimensions (with Rack Ears) HxWxD | 1.75“ x 19“ x 12.25” (45 mm x 483mm x 311mm) |
| Height | 1.75" (4.45cm) |
| Width | 17" (43.2cm) |
| Depth | 12.25" (31.1cm) |
| Weight | 10.85 lb. (4.92kg) |
| Warranty Period | 36 months from date of purchase |
