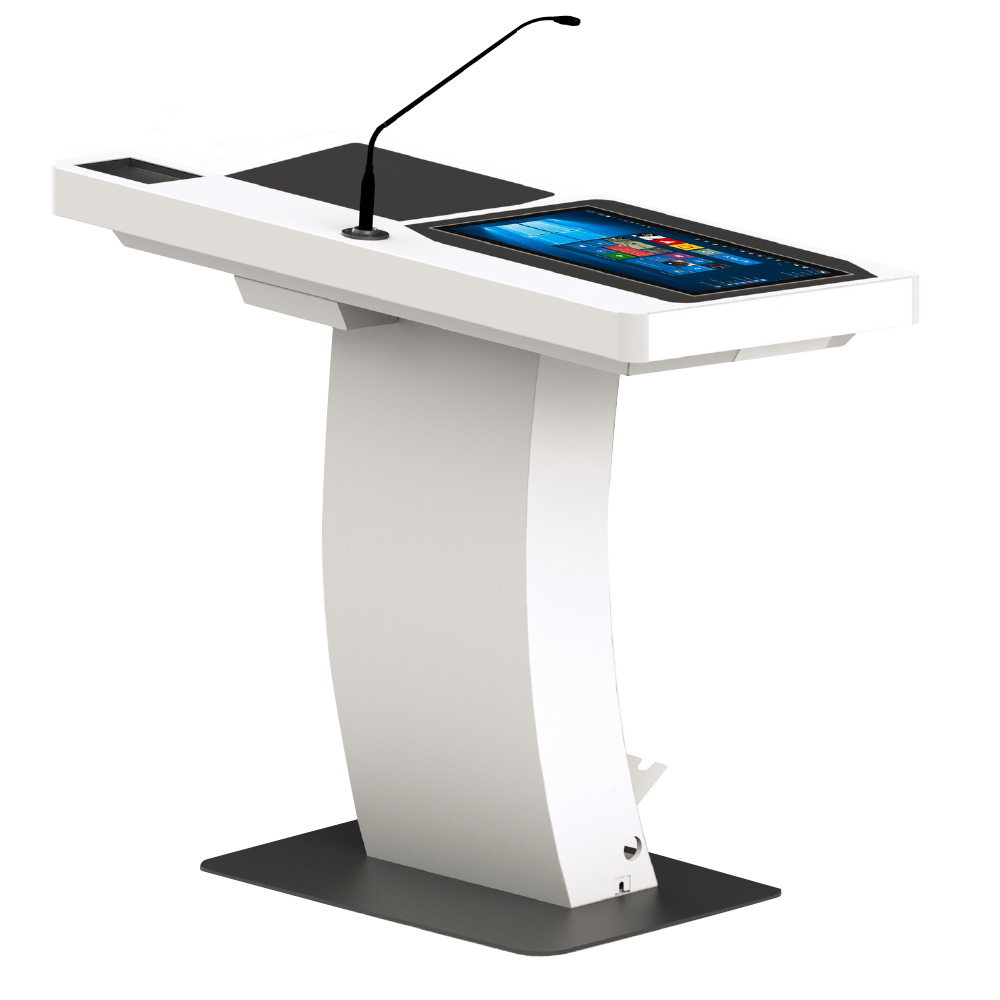

EP22A
Pupitre de conférence avec écran tactile 22" au dessus.
Description
EP22A Digital Podium
Complex presentations that require multiple additional devices, communication and power ports, AV control panels, EP22A covers all of them. Professional and more technical meetings, conferences and classes are the places for EP22A. Well designed, dedicated work-areas on top surface allows the speaker to make the meeting rooms, and lecture halls. It is equipped with personal computer, 32” front screen. it is also designed to be
- MultiTouch Speaker Screen
- Player PC : Intel i3 4GB, 120 GB SSD Win 10 Embedded iot OS
- Switcher & Scalar (HDMI & VGA in)
- Microphone
- Stereo Amplifier
- Speakers
- Creapen Annotation
| Model: | EP22A |
| Main Specifications | |
| Speaker Screen | 22″ Full HD Multi Touch Capacitive Touch Screen |
| Built-in PC for Speaker Screen | intel i3 4GB Ram, 120 GB SSD, Win 10 Embedded ioT |
| Switch | Atlona SC-500 3×1 switcher with two HDMI inputs and one VGA input |
| Scalar | HD video scaler with HDMI output and input resolution control |
| Source selection | Automatic input selection and automatic display control |
| Amplifier | – |
| Mixer | – |
| Microphone | 1 pcs 18″ Shure Gooseneck Condenser Microphone |
| Detailed Specifications | |
| Lecturer Panel | 22″ |
| Screen Specifications | |
| Resolution | 1920×1080 FHD |
| Brightness | 250 cd/m2 |
| Panel Type | IPS |
| Aspect ratio | 16:9 |
| Touch Technology | Capacitive |
| Touch Points | 10 points |
| Lecturer Panel PC Specifications | |
| CPU | 4th Generation Intel Core i3 |
| RAM | 4 GB DDR4 |
| HDD | 120 GB SSD |
| Operating System | Windows Embedded 10 IoT |
| Microphone | |
| Length | 18″ |
| No of microphone | 1 pcs |
| Output Connector | 3-way XLR (Male) |
| Microphone Type | Cardioid |
| Frequency Response | 50 -18 kHz |
| Sensitivity (at 1,000Hz) | -60dB ± 3dB |
| Impedance | 220Ω |
| Power ON indicator | LED |
| Power requirement | Phantom Power (48V) |
| Inputs | |
| VGA | Available (On desk for Laptop) |
| Sound | 3,5mm jak (On desk for Laptop) |
| HDMI | Available (On desk for Laptop) |
| Ethernet | Available (On desk for Laptop) |
| 230V Plug (Max 5A) | Available (On desk for Laptop / mobile phone charge) |
| USB | USB 2.0 and USB 3.0 (for internal PC) |
| Outputs (Bottom of Podium) | |
| HDMI | Available (Projector Out) (max output 1080p) |
| RS232 | – |
| Data Connection (Bottom of Podium) | |
| Ethernet 1 | Network Connection for Complete System |
| Power | |
| Power Input | 230V 50Hz |
| Power Consumption | 550W (max) |
| Peripherals &other features | |
| Color | Grey (RAL 7047) |
| Packing | Wooden box export packing |
| Mechanical Specs | |
| Outline Dimension (mm) | Set: 580 x 1160 x 980 |
| Package: 676 x 1256 x 1186 | |
| Weight (kg) | Set: 76 kg |
| Package: 117 kg |
| Optional features | Flight case |
