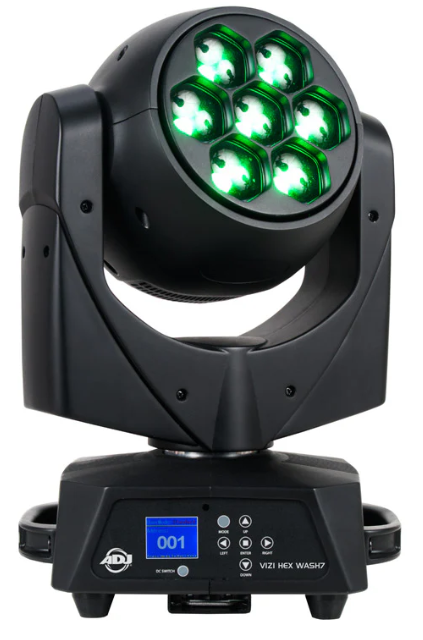

VIZ614

Optical

• Light Source: 7 (15) Watt HEX RGBWA+UV LED

• Life Expectancy: 50,000 hrs

• Beam Angle: 5~55-degree

• Refresh Rate: 1.2KHz

Specifications

• Pan amp; Tilt Range: 630-degree (540 Optional) /Tilt 270-degree

• Colors: 64 built-in color macros

• Dimming: Electronic

• Zoom: Motorized 5°-55°

• Strobe: Electronic

• Dimmer Curves: 5 dimmer curves

• Operational Modes: 2 modes Program/ DMX

• Flicker Free

• WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight). Also compatible with Aria X2 Transceivers for Wireless DMX control.

• Dimensions (LxWxH): 11.75” x 8 x15.75”/300x200 x 400mm

• Weight: 19 lbs./8.5 kgs

Connections

• Power Input: Locking power IN connection

• Power Pass through: Locking power OUT connection

• Data: 3 amp; 5-pin In/Out DMX

• With Wired Digital Communication Network

Control

• DMX Modes: 2, RDM (Remote Device Management)

• On Board: LCD menu 180 degree inverse

• 16 Selectable WiFLY Address Channels

Certifications

• ETL Approved, CE Certified

Electrical

• Input Voltage: 100~230 V, 50 Hz./60Hz

• Power draw @120V: 137W

• Power draw @ 220V:

Optional Road Cases:

• DRC MH: 2 Vizi Hex Wash7 fit in the DRC MH Road Case

• QRC MH: 4 Vizi Hex Wash7 fit in the QRC MH Road Case

Whats Included

• Omega bracket

• Locking power to Edison cable

• User Manual
