ULT012

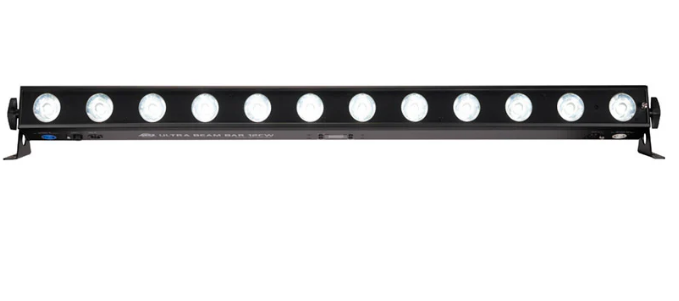

The Ultra Beam Bar 12CW is a cool white dynamic white lighting beam solution. This sleek 41.75-inch (1 meter) linear fixtures is powered by twelve 20W cool white LEDs (6200K), with full pixel control allowing users to create stunning lightshows. Includes the UCIR remote control.
Description
Specifications
Light Source:
• 12 x 20W Ultra bright (6200K, Cool White) LEDs
• Long Life LEDs (Rated at approximately 50,000 hrs.)
• 1340 Lumens
• 5° beam angle (Per pixel)
• Pixel Pitch: 85.5mm
Features:
• 12 Sharp Beams
• Primary / Secondary stand alone control mode
• 13 Built-In Programs
• Compatible with the ADJ UC-IR remote. Operates at a distance of up to 32.8 feet (10 meters). UC-IR included.
• Horizontal Magnetic Alignment feature (Built-In)
• DMX, RDM and RDM NET Compliant
• Pixel Flip mode
Control:
• OLED Display with 4-buttons
• 5 DMX Channel Modes: 1, 3, 12, 14, 19 Channels
• Individual pixel controllable in 12, 14 and 19 channel DMX modes
• 5 operational modes: Manual Pixel, Manual Program, Program Sound Trigger, and DMX-512 Modes
• LED Refresh Rate: 1.9KHz
• 6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre Stage 2)
• 4 selectable Dim Curves (Square, Linear, Inv. Square S. Curve)
• Built-In Microphone for sound trigger
• Synchronized, pulse and random strobing
• Electronic Dimming: 0-100%
Connections:
• Linkable: DMX via 5-pin XLR cable
• Indoor Locking power In/Out to daisy chain power
• Safety Loop
Electrical:
• Multi-voltage operation: AC 100V-240V 50/60Hz
• Power Draw: 60W
• Daisy-chain power link (Up to 17 Ultra Beam Bar 12CW's can be linked @120V and up to 32 can be linked @230V)
Dimensions / Weight:
• Dimensions (LxWxH): 2.96" x 42.60" x 4.2" (75x1082x106.7mm)
• Weight: 7.50 lbs./ 3.4kg.
Certifications / IP Rating:
• cETLus (Control # 4002034)
• CE
• IP20
Environment:
Operational Temperature Range: -1°F ~ 113°F (-20°C ~ 45°C)
Storage Temperature: -22°F ~ 113°F (-20°C ~ 45°C)
What's Included:
• (1) Indoor Locking Power Cord
• (1) UC-IR
• (1) 5° Beam Filter
• (1) Safety Cable
• Includes mounting brackets to set on the ground or to mount a clamp to for truss mounting
Optional Accessories:
• (1) 1x40° Linear Diffusion Lens (SKU: UBL912)
Note: Specifications are subject to change without notice.
