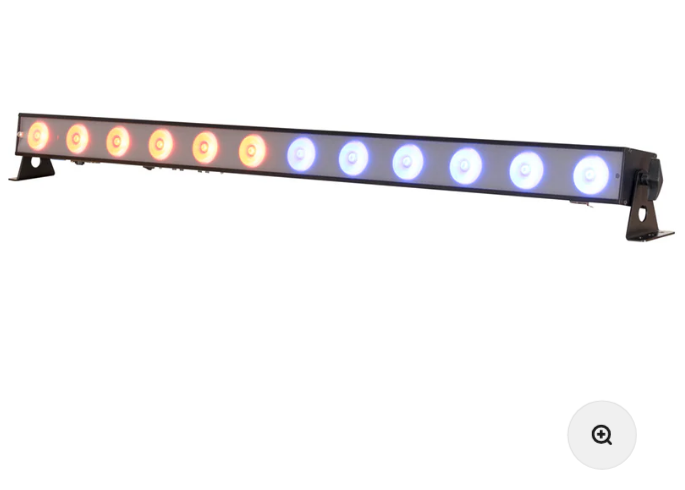

UBL133
Expanding on the success of the UBL12H, the innovative UBL12HB is a battery-operated, 1-meter linear LED wash luminaire. It features a lime-enhanced HEX LED with twelve (12) 20-Watt LEDs in Red, Green, Blue, Amber, Lime, and UV. The addition of the lime chip delivers superior color rendering with a CRI exceeding 90 and offers adjustable white light ranging from 2,300K to 9,900K.
Description
Specifications
Light Source:
• 12 x 20W Ultra bright (Red, Green, Blue, Amber, Lime and UV) LEDs
• Long Life LEDs (Rated at approximately 50,000 hrs.)
• 17° beam angle
• CRI gt;90
• Pixel Pitch: 85.5mm
Features:
• Linear Color Temperature Control (2,300K to 9,900K)
• Smooth RGBAL+UV color mixing
• Horizontal Magnetic Alignment feature (Built-In)
• Aria X2 Management System
• Includes UC-IR24 remote. Operates at a distance of up to 32.8 feet (10 meters)
• RDM and RDM Net Ready
Control:
• Linear Color Temperature Control (2,300K to 9,900K)
• OLED Display with 4-buttons
• 7 DMX Channel Modes: 6, 11, 13, 16, 36, 43, amp; 46 Channels
• 6 Groups x2 RGBAL+UV LED pixels controllable via DMX in 36, 43 amp; 46 channel modes
• 5 operational modes: Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode
• LED Refresh Rate: 1.9KHz
• 64 built-in Color Macros
• 6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre amp; Stage 2)
• 4 selectable Dim Curves (Square, Linear, Inv. Square amp; S. Curve)
• Built-In Microphone for sound trigger
• LED pulse and strobe effect
• Electronic Dimming: 0-100
Connections:
• Linkable: DMX via 5-pin XLR cable
• Indoor Locking power In/Out to daisy chain power
Electrical:
• Multi-voltage operation: AC 100V-240V 50/60Hz
• Power Draw: 61W
• Daisy-chain power link (Up to 17 UBL12H's can be linked @120V and up to 32 UBL12H's can be linked @230V)
Battery:
• Rechargeable Lithium-ion
• Battery Capacity: 7,000mAh
• Battery Voltage: 22.2V
• Charge Time, AC Power: 5 Hours (To Full)
• Charge Time, Flight Case: 5 Hours (To Full)
• Up to 20-hour Battery Operation
• Battery Cycles: 500
Dimensions / Weight:
• Dimensions (LxWxH): 42.60" x 3.42" x 4.22" (1082x86.9x107.1mm)
• Weight: 10.58 lbs./ 4.8kg.
Certifications / IP Rating:
• cETLus (Pending)
• CE
• FCC
• IP20
Environment:
Operational Temperature Range: -1°F ~ 113°F (-20°C ~ 45°C)
Storage Temperature: -22°F ~ 113°F (-20°C ~ 45°C)
What's Included:
• (1) Indoor Locking Power Cord
• (1) UC-IR24
• (1) 20° Diffusion Filter
• Includes pair mounting brackets to set on the ground or to mount a clamp to for truss mount
Optional Accessories:
• (1) 1x40° Linear Diffusion Lens (SKU: UBL912)
Note: Specifications are subject to change without notice.
