STR100

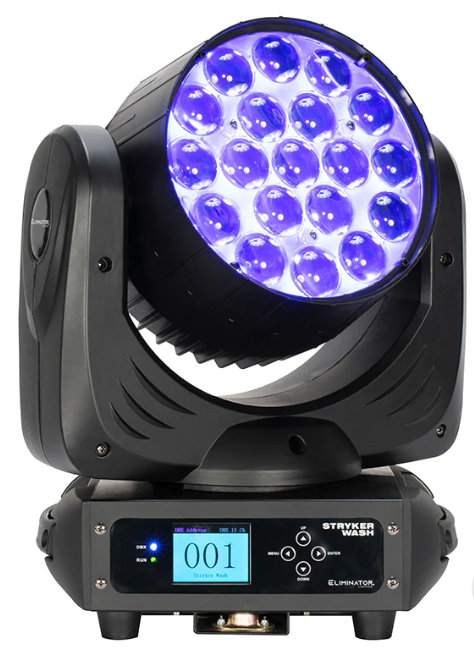

228W professional moving head wash fixture with variable motorized zoom (6 ~ 50-degrees), 19x 12W quad color 4-in-1 (RGBW) LEDs with 3 zones of LED ring control and tunable white color temperature control from 3,200-10,000K
Description
Specifications
Light Source:
• 19x 12W RGBW (4-IN-1) LEDs
• 50,000 Hours Life
Features:
• Fast, precise, pan tilt movements
• Three zone DMX control mode
• Primary / Secondary stand alone mode
• Motorized Zoom: 6 ~ 50°
• Linear CT DMX control channel. 3200K-10000K
• Up to 18 Strobe flashes per second
Connections:
• DMX Data In/Out: 3-pin XLR
• Power In: Blue Locking indoor power connection
• Power Out: White Locking indoor power connection
Control:
• Color LCD display with touch buttons
• 2 DMX channel modes: 13 23 channels
• Protocols: DMX-512, Auto and Sound control modes
• With Wired Digital Communication Network
Pan/Tilt:
• Pan/Tilt: 540-degrees / 210-degrees
• 16-bit Fine Pan
• 16-bit Fine Tilt
Electrical:
• Multi-voltage operation: 100-240V, 50/60Hz
• Maximum power draw: 300W
Dimensions Weight:
• Dimensions (LxWxH): 8.7” x 12.8” x 15.7” / 222mm x 324mm x 399mm
• Weight: 18.1 lbs. / 8.2 kg.
Technical:
• Operating environment: Indoor 5°~104°F (-15º-40ºC)
• Fan Cooled
• Housing: Black Composite Plastic
Road Cases (Sold Separately):
• Two (2) Stryker Wash fit inside the ADJ DRC MH road case
• Four (4) Stryker Wash fit inside the ADJ QRC HM road case
Approval / IP Rating
• cETL Approved (Control # 5027824)
• FCC Compliant
• CE Compliant
• UKCA Compliant
• IP20
Specifications are subject to change without notice.
